Map Light Bulb: Service and Repair

Bulb Replacement

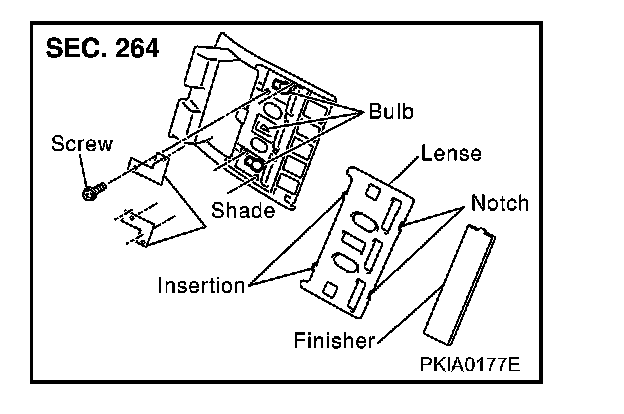

Map Lamp
1. Remove the finisher using a clip driver or a suitable tool.
2. Insert a thin screwdriver in the notch and remove the lens.
3. Remove the screw and remove the shade.
4. Remove the bulb.

Map lamp : 12 V 8 W
