Check Sheet Results (Example)

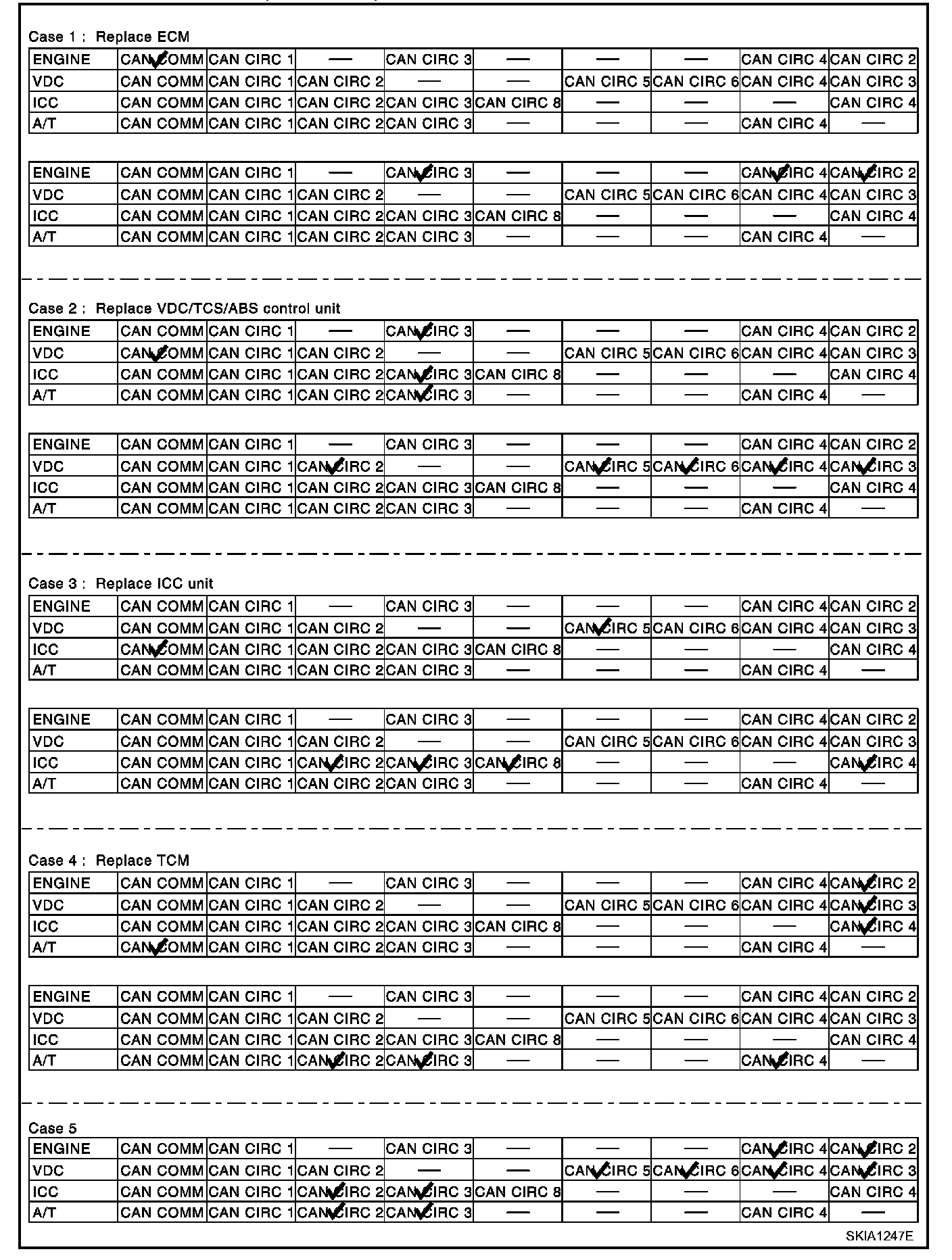

Check Sheet Results (Examples) Part 1:

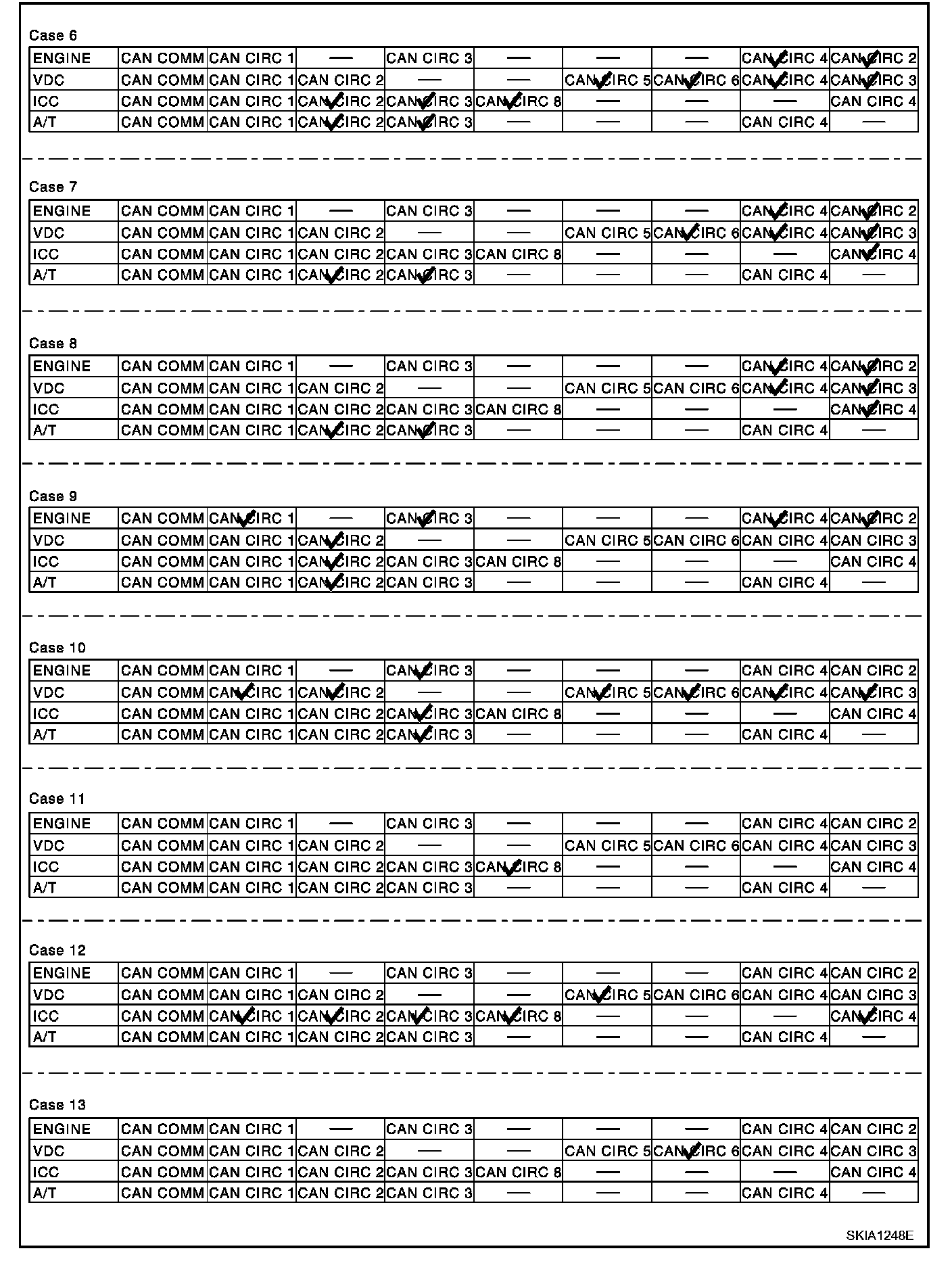

Check Sheet Results (Examples) Part 2:

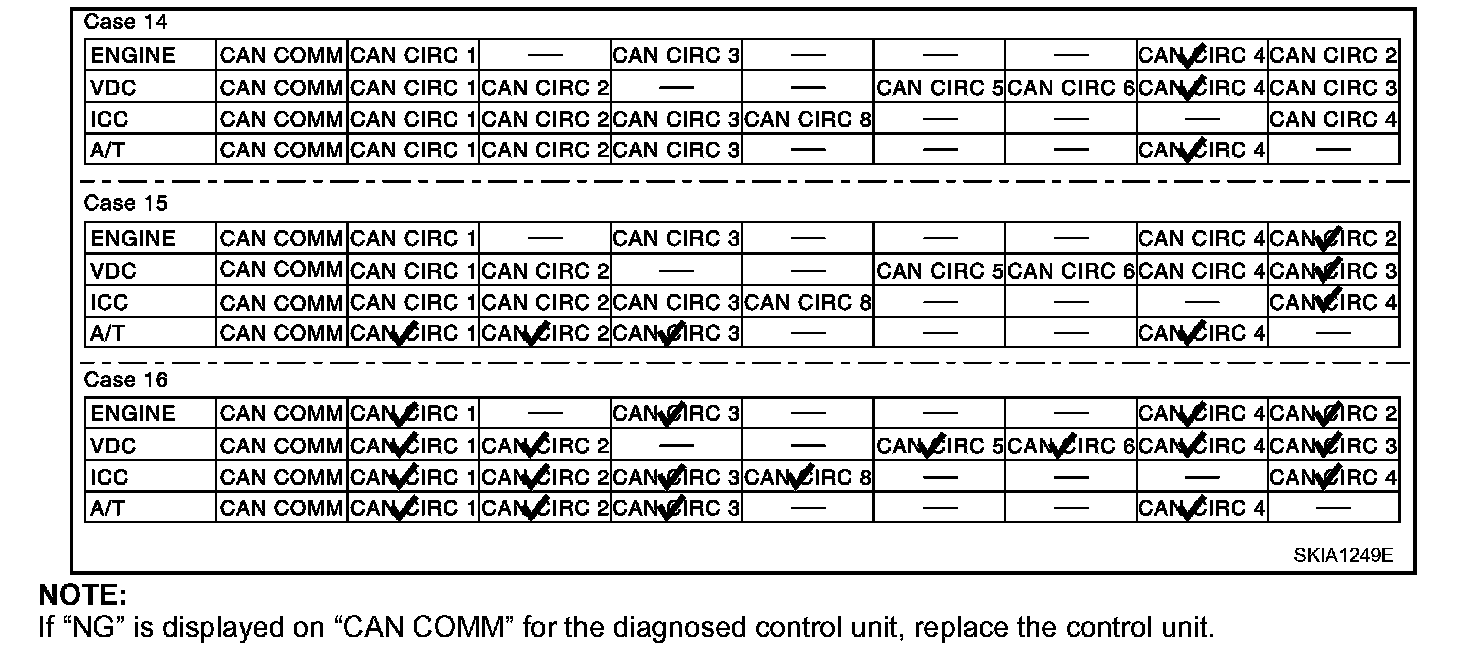

Check Sheet Results (Examples) Part 3:
