Cigarette Lighter Relay: Service and Repair

Removal and Installation
1. Remove the console finisher, refer to "CONSOLE BOX ASSEMBLY" .
2. Disconnect power socket connector.

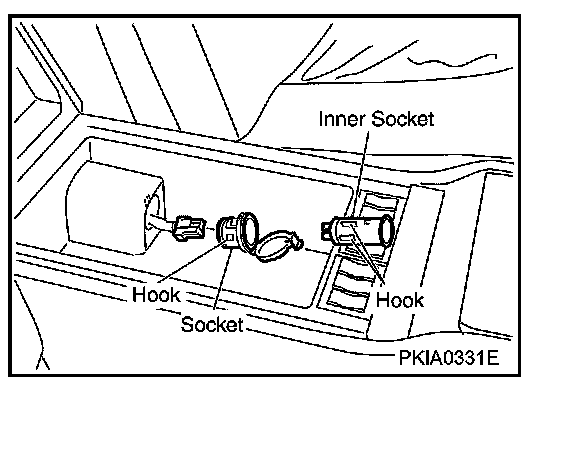

3. Remove inner socket and socket from the console finisher while pressing hook on inner socket.
4. Remove socket from inner socket while pressing hook.
