Main Bearing Housing - Inner Diameter

INNER DIAMETER OF MAIN BEARING HOUSING
Install the main bearing caps with the main bearings removed, and tighten the mounting bolts to the specified torque.

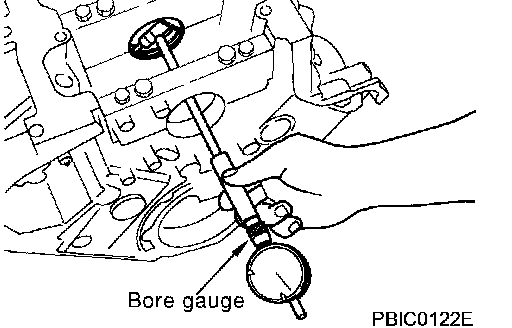

Using a bore gauge, measure the inner diameter of the main bearing housing.

Standard:................68.944 - 68.968 mm (2.7143 - 2.7153 inch)

If out of the standard, replace the cylinder block and main bearing caps as an assembly.

NOTE: These components cannot be replaced as a single unit, because they were processed together.
