Pressure Hose/Pipe HVAC

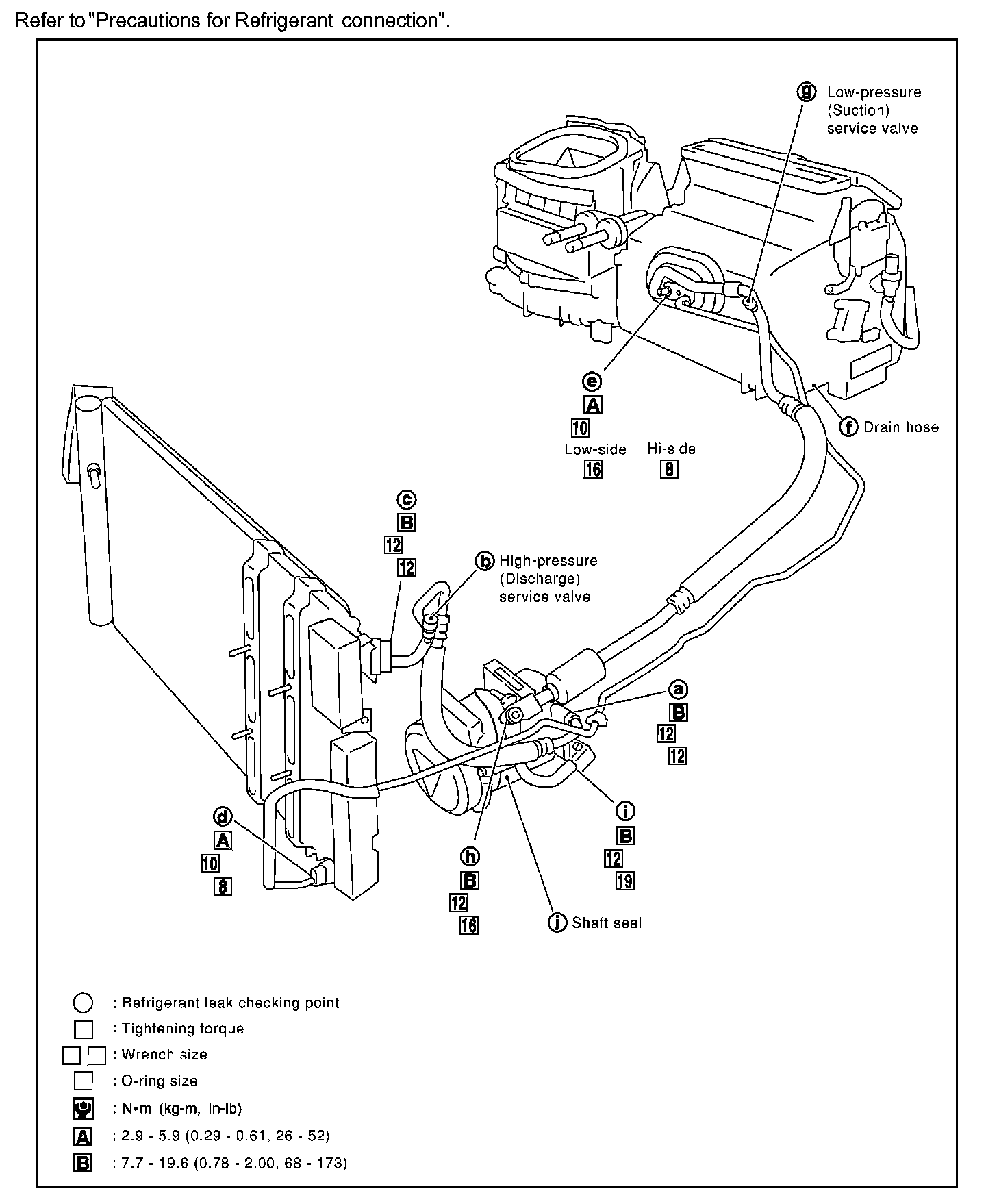

Pressure Hose/Pipe HVAC:

Low-Pressure Flexible Hose
Low-pressure flexible hose and bolts mounting the high-pressure pipe (evaporator side)
Tightening torque : 2.9 - 5.9 N-m (0.29 - 0.6 kg-m)

Bolts mounting the low-pressure flexible hose (compressor side)
Tightening torque : 7.8 - 19.6 N-m (0.8 - 2.0 kg-m)



High-Pressure Flexible Hose
Bolt and nut mounting the high-pressure flexible hose
Tightening torque : 7.8 - 19.6 N-m (0.8 - 2.0 kg-m)


High-Pressure Pipe
Bolts securing the high-pressure pipe (condenser side, evaporator side)
Tightening torque : 2.9 - 5.9 N-m (0.29 - 0.6 kg.m)
