Inspection After Removal

INSPECTION AFTER REMOVAL / Front Door Glass and Regulator
Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.
- Wire wear
- Regulator deformation
- Grease condition for each sliding part

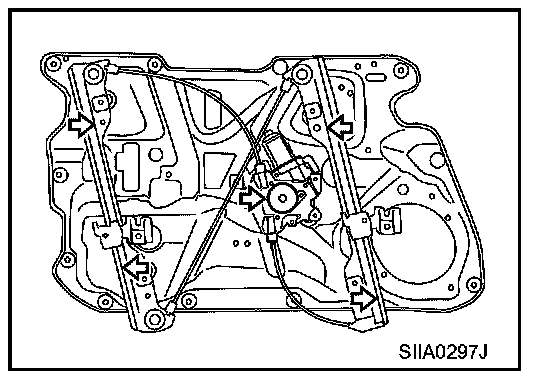

The arrows in the figure show the application points of the grease "Dow Corning Moly Coat SK 623".
