Removal and Replacement

Front Door Glass and Regulator:

REMOVAL / Front Door Glass and Regulator
1. Remove the front door finisher.
2. Remove the door speaker.

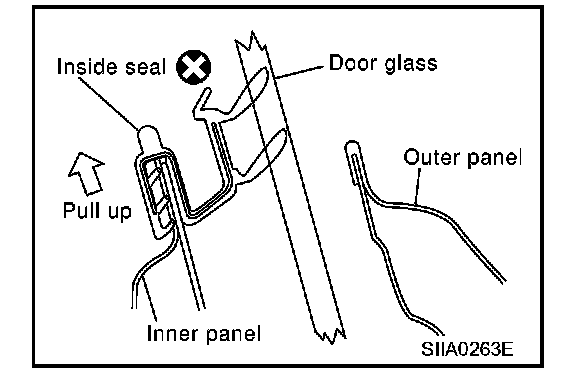

3. Pull the inside seal out of the inner panel.






4. Operate the power window main switch to raise/lower the door window until the glass mounting bolts can be seen.
5. Remove the glass mounting bolts.

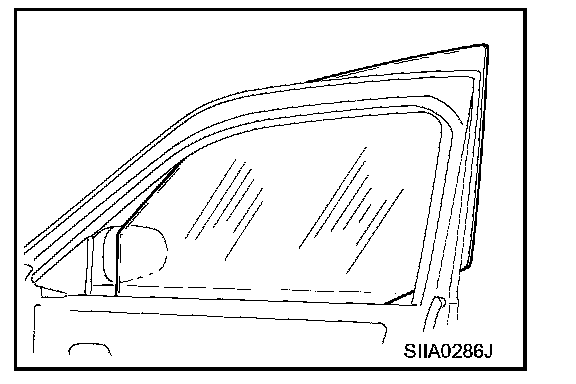

6. While holding the door window, raise it at the rear end to pull the glass out of the sash toward the outside of the door.

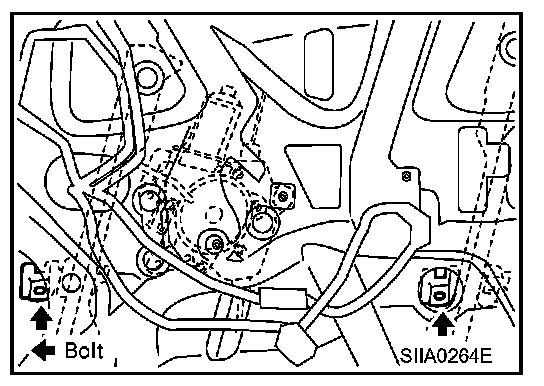

7. Remove the mounting bolts, and remove the module assembly.

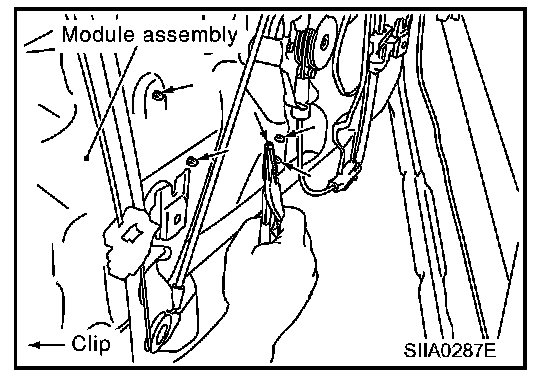

8. Disconnect the harness connector for the module assembly, and unclip the harness from the back.


Install in the reverse order of removal.
