Windshield Washer Pump: Service and Repair
Removal and Installation for Washer Pump1. Remove fender protector, refer to "FENDER PROTECTOR".
2. Remove washer pump connector and hose.

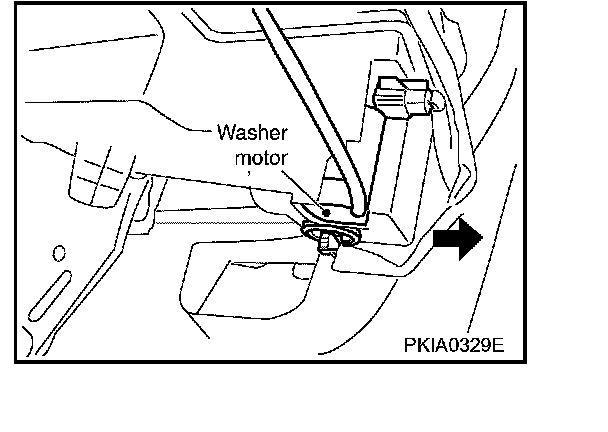

3. Pull out washer pump in the direction of the arrow in the figure, and remove the washer pump from the washer tank.
CAUTION: When installing washer pump, there should be no packing twists, etc.
