Ignition Coil: Service and Repair

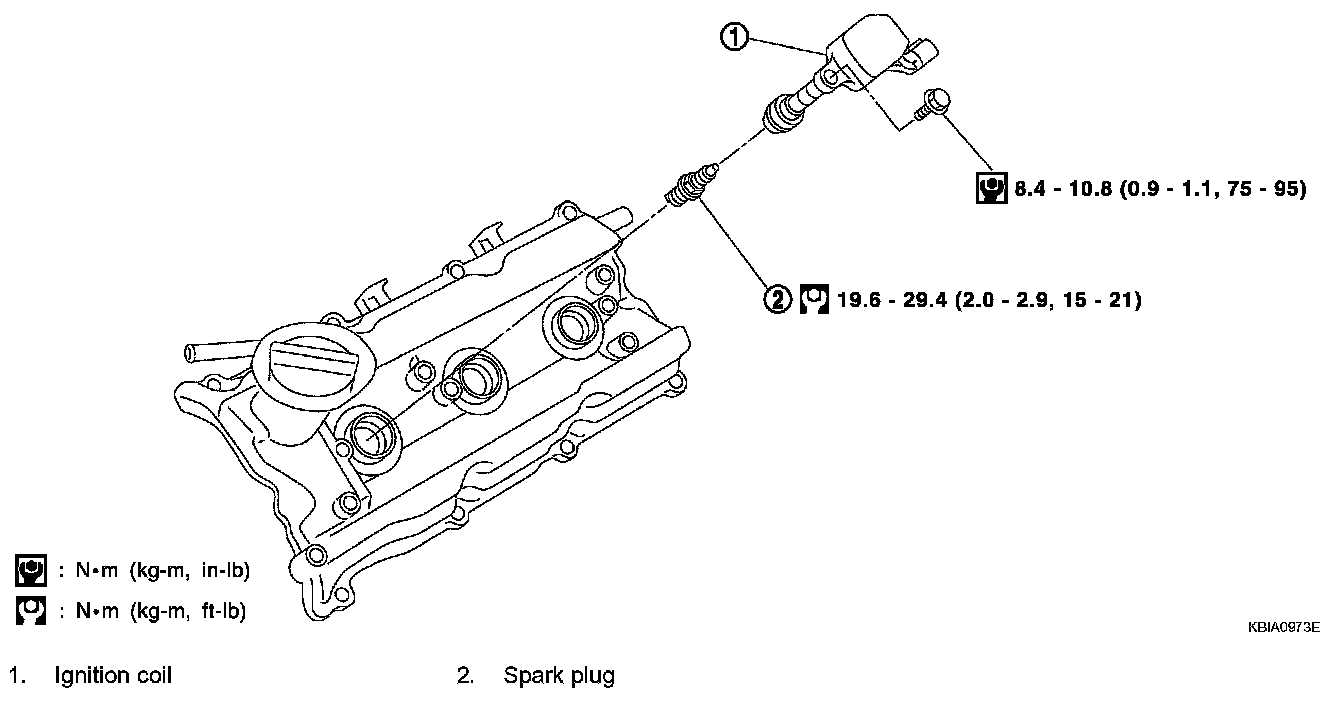

IGNITION COIL

IGNITION COIL:

REMOVAL
1. Remove engine cover with power fool.
2. Remove air cleaner case and air duct (for ignition coil of LH bank side).
3. Move aside harness, harness bracket, and hoses located above ignition coil.
4. Remove harness connector from ignition coil.
5. Remove ignition coil.

CAUTION: Do not shock it.

6. Using spark plug wrench (commercial service tool), remove spark plug.



INSTALLATION
Installation is in the reverse order of removal.
