Traction Control Switch: Service and Repair

VDC Off Switch

REMOVAL
1. Remove the instrument lower driver panel.

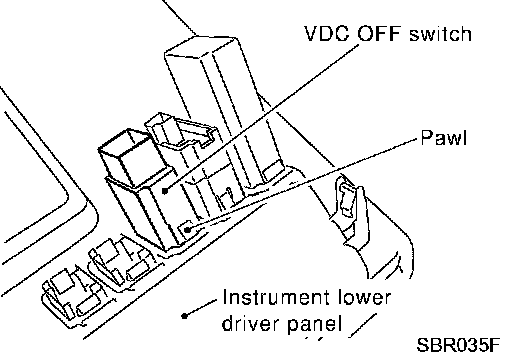

2. Push the VDC OFF switch's pawls and remove the switch from the instrument lower driver panel.



INSTALLATION
Installation is the reverse order of removal.

CAUTION: Be careful not to damage sensor edge and sensor rotor teeth. When removing the front or rear wheel hub assembly, first remove the ABS wheel sensor from the assembly. Failure to do so may result in damage to the sensor wires making the sensor inoperative.
