Home >> Infiniti >> 2003 >> I35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Brake Rotor/Disc >> Specifications

Brake Rotor/Disc: Specifications

BRAKES / GENERAL SPECIFICATIONS:

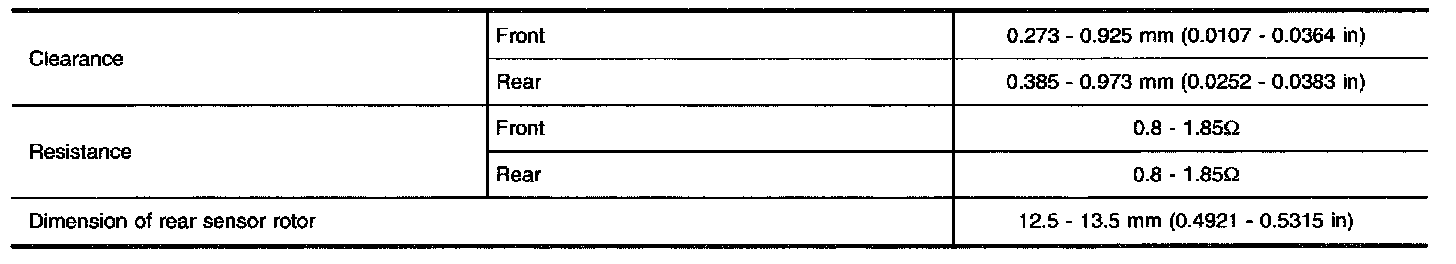

ABS WHEEL SENSOR:

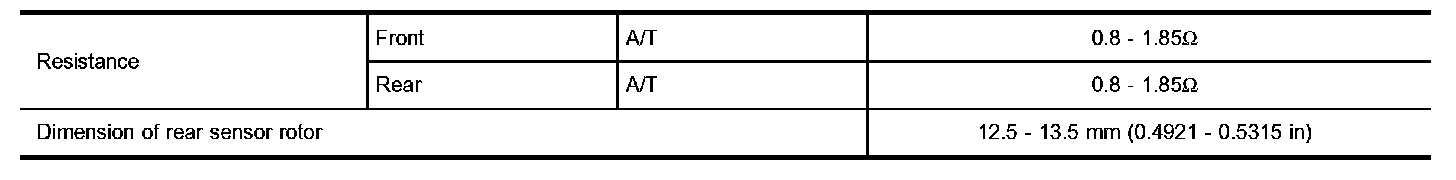

ABS/TCS/VDC Front Wheel Sensor:
