Wiper Switch: Service and Repair

Replacement


For removal and installation of spiral cable, refer to Clockspring Assembly/Spiral Cable.
Service and Repair


Each switch can be replaced without removing spiral cable.






1. Remove the instrument lower panel on driver side.
2. Remove the steering column cover.

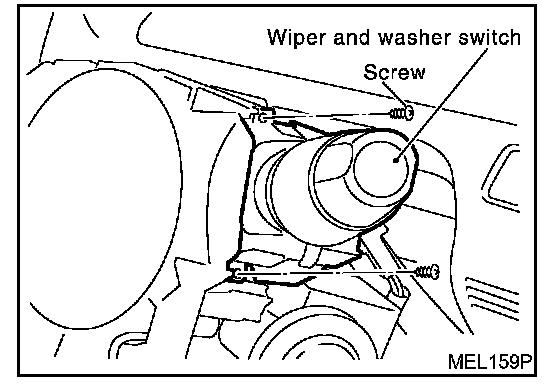

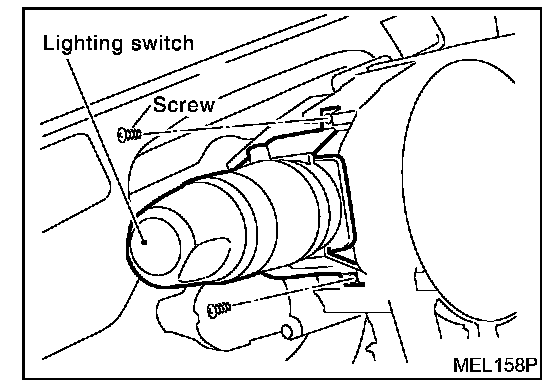

3. Remove lighting switch or wiper and washer switch mounting screw.
4. Remove lighting switch or wiper and washer switch from the spiral cable.
5. Disconnect lighting switch or wiper and washer switch connector.
