Voice Activation Module: Service and Repair

Removal and Installation for Voice Activated Control Module

REMOVAL
1. Remove trunk side trim. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER".

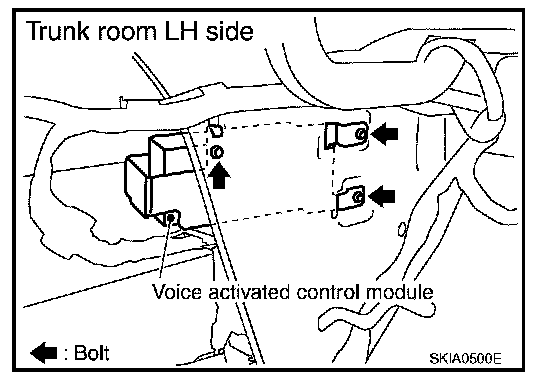

2. Remove voice activated control module.

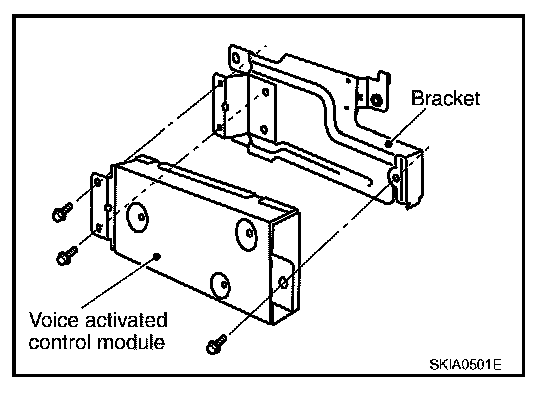

3. Remove bracket from voice activated control module.

INSTALLATION
Install in the reverse order of removal.
