Access Cover: Service and Repair

REMOVAL

Engine Room Cover:

Remove clips on back with clip driver for front air guide.

CAUTION:
Do not damage or scratch cover when installing or removing.

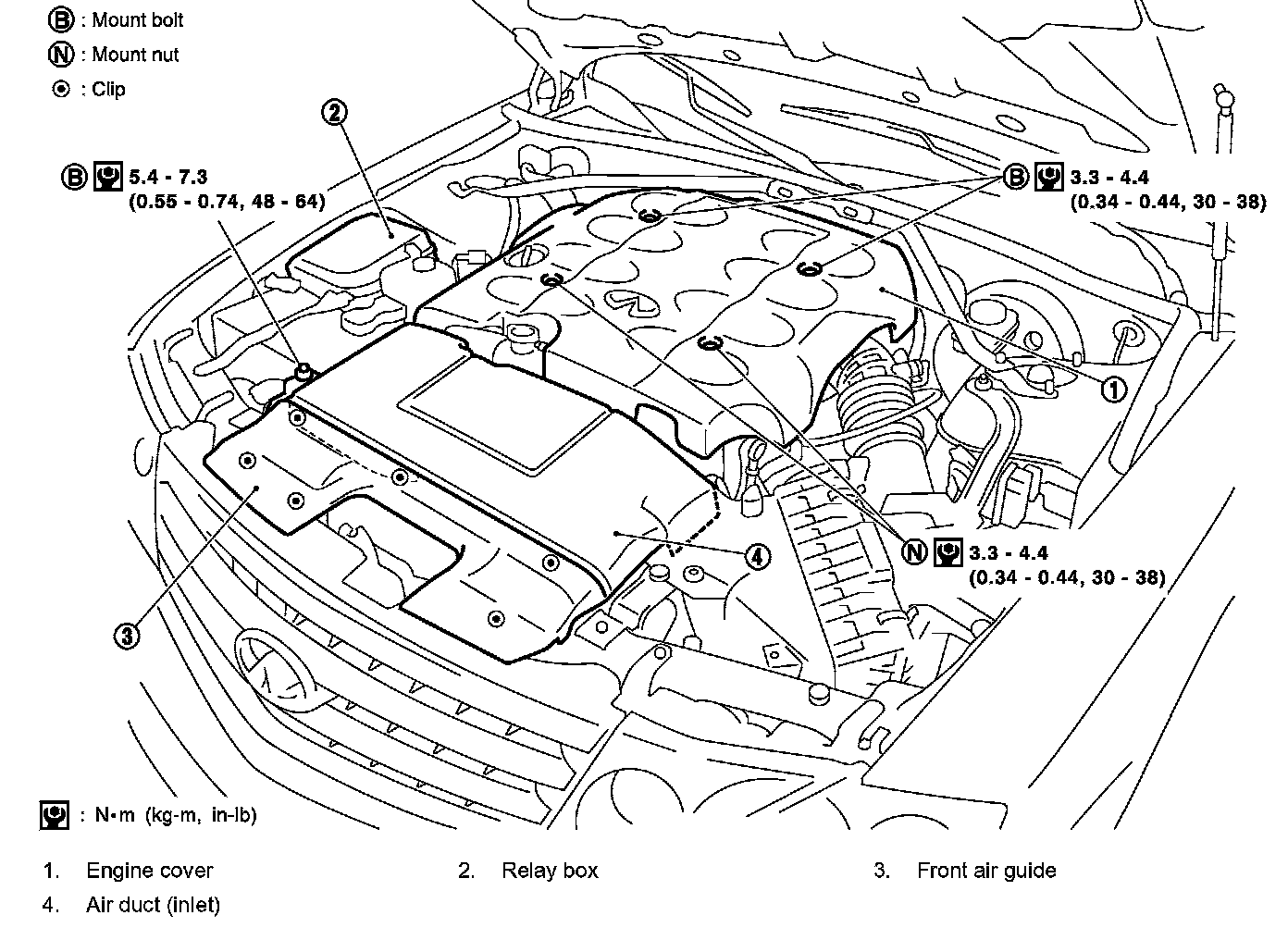

Major parts and inspection points under each cover are as follows; (numbered as in illustration).
1. Upper side of engine assembly, power steering reservoir tank, cooling fan reservoir tank
2. Relay
3. Cooling fan fluid cooler, power steering fluid cooling tube
4. Engine assembly front side, drive belts, cooling fan
INSTALLATION
Install in the reverse order of removal.
