Console: Service and Repair

Disassembly and Assembly

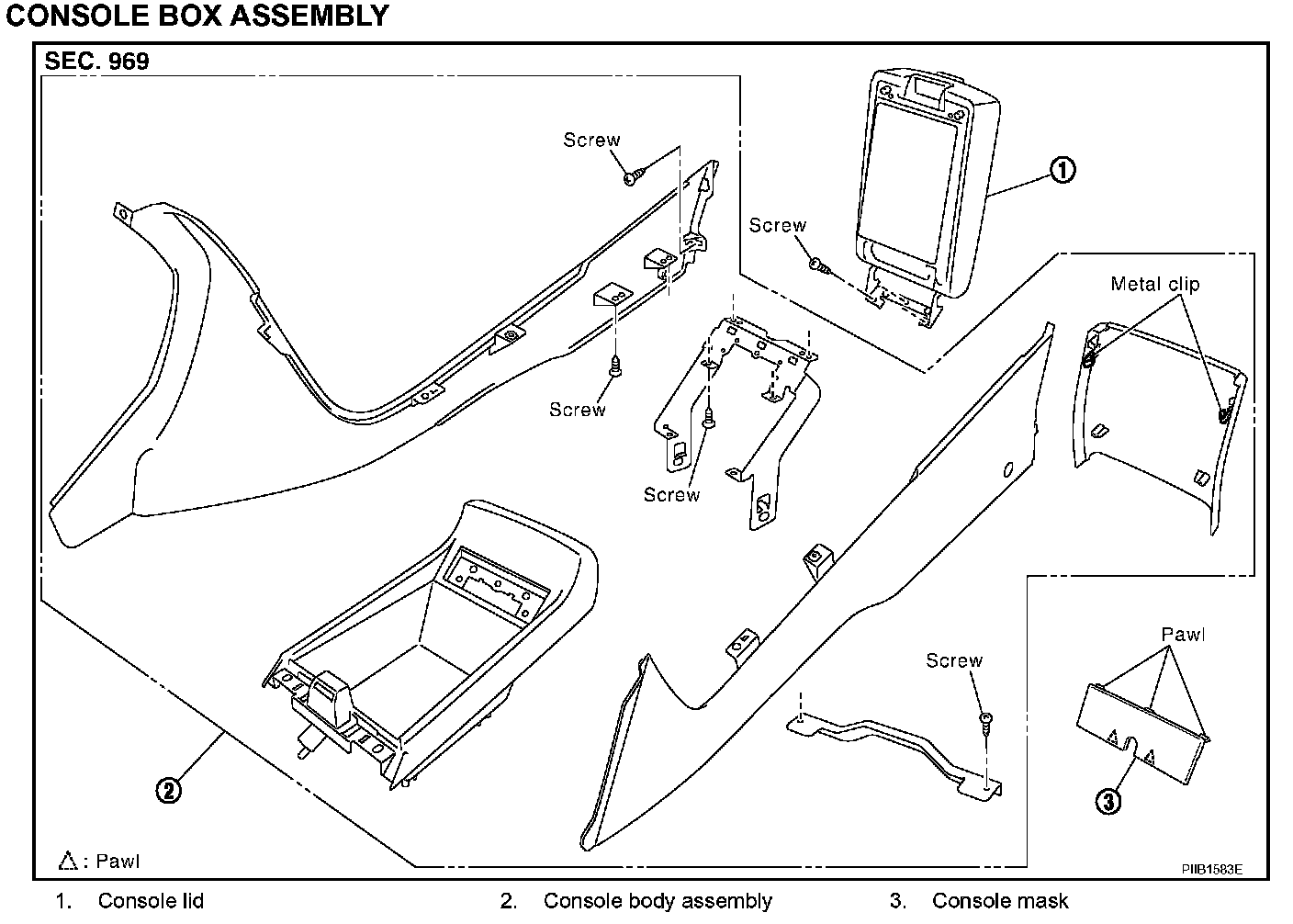

CONSOLE BOX ASSEMBLY

Disassembly
1. Remove console mask.
2. Remove screws, and then remove console lid.

Assembly
Assemble in the reverse order of disassembly.
