Trunk / Liftgate Lock: Service and Repair

Auto Closure Unit
1. Remove trunk rear finisher.
2. Disconnect the harness connector.

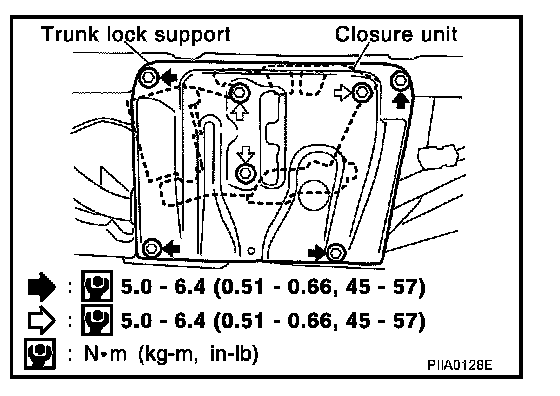

3. Remove the mounting bolt, and remove auto closure unit.

Install in the reverse order of removal.

NOTE: When installing the auto closure unit, be careful not to pinch nearby wiring harnesses.

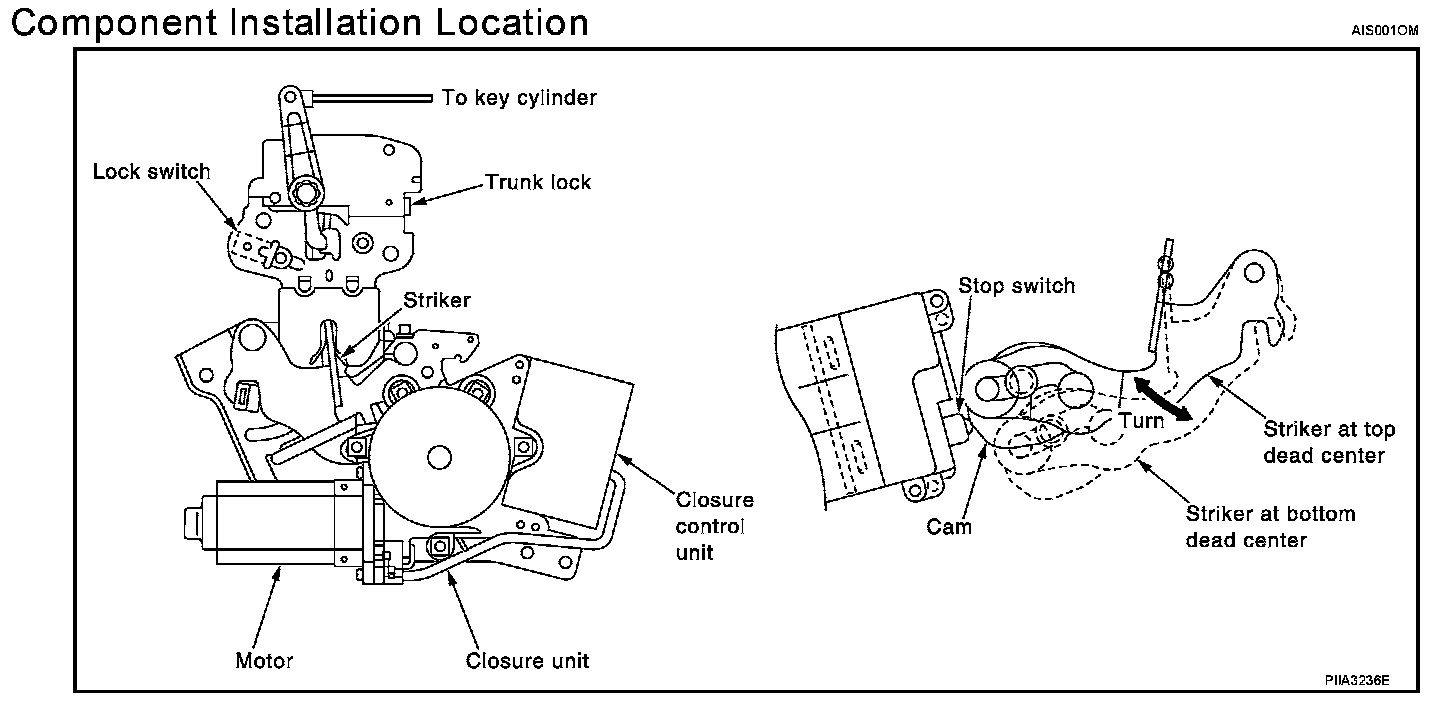

COMPONENT INSTALLATION LOCATION
