Compressor Clutch: Description and Operation
SYSTEM DESCRIPTIONAuto amplifier controls compressor operation by ambient temperature and signal from ECM.
Low Temperature Protection Control
Unified meter and A/C amp. (auto amp.). Will Turn compressor ON or OFF as determined by a signal detected by ambient sensor and intake sensor.

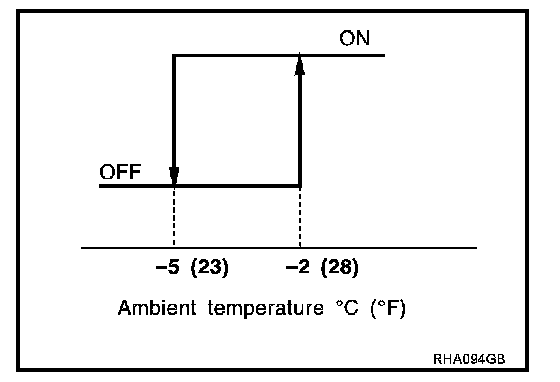

When ambient temperatures are greater than -2 °C (28 °F), the compressor turns ON. The compressor turns OFF when ambient temperatures are less than -5 °C (23 °F).

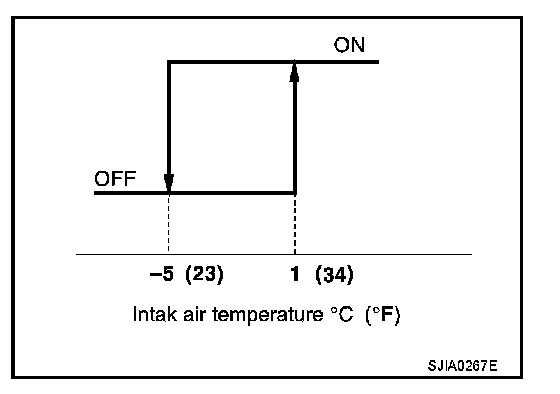

When intake air temperatures are greater than 1 °C (34 °F), the compressor turns ON. The compressor turns OFF when intake air temperatures are less than -5 °C (23 °F).
