Evaporator Temperature Sensor / Switch: Service and Repair

INTAKE SENSOR

REMOVAL
1. Remove heater & cooling unit. Refer to "HEATER & COOLING UNIT ASSEMBLY" .
2. Remove evaporator from heater & cooling unit.
3. Separate heater & cooling unit case.

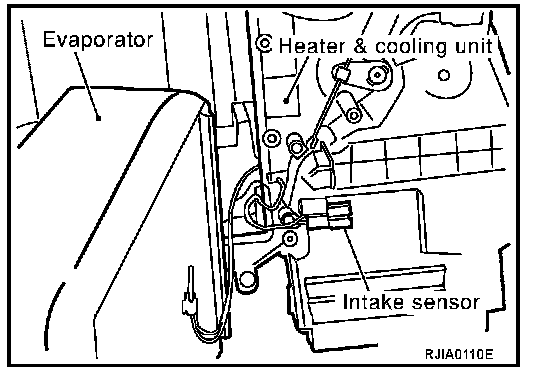

4. Remove intake sensor.

INSTALLATION
Installation is basically the reverse order of removal.
