Evaporator Temperature Sensor / Switch: Testing and Inspection

COMPONENT INSPECTION

Intake Sensor

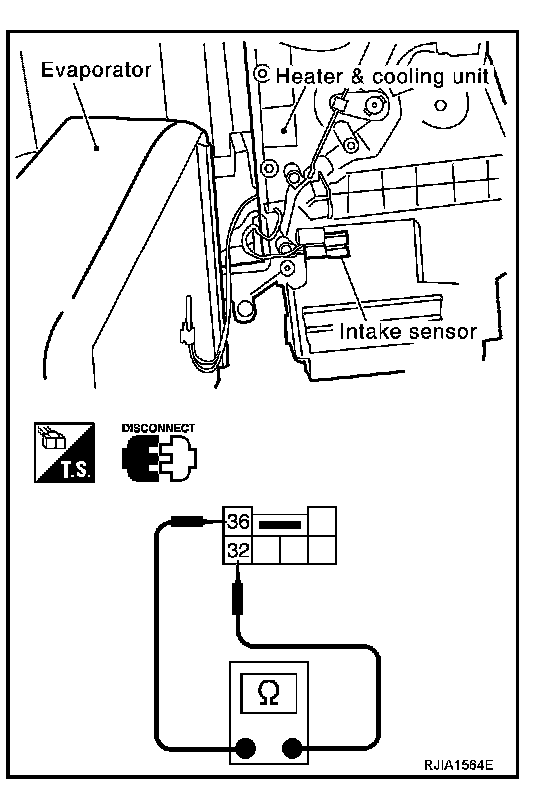

After disconnecting intake sensor harness connector, measure resistance between terminals 32 and 36 at sensor harness side, using the table.
If NG, replace intake sensor.
