Dimmer Switch: Service and Repair

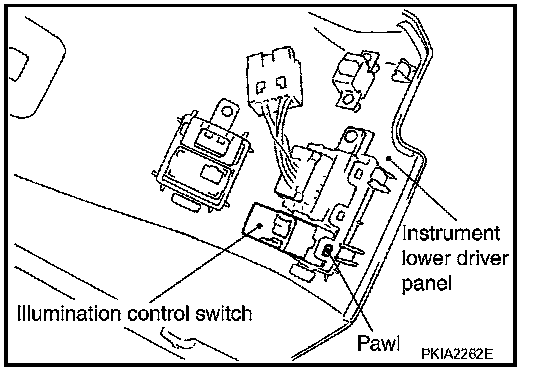

ILLUMINATION CONTROL SWITCH




1. Remove the instrument lower driver panel. Refer to "Removal and Installation" in "INSTRUMENT PANEL".
2. Press the illumination control switch fixing pawls and remove the unit from the instrument lower driver panel.
