Leak Check

LEAK CHECK

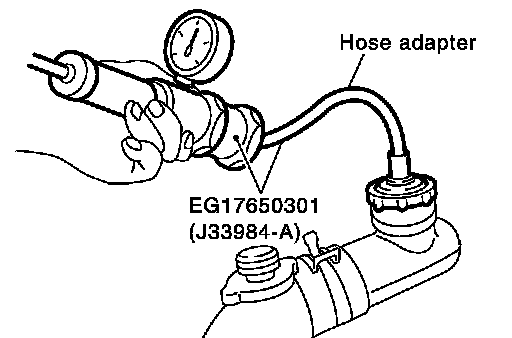

To check for leaks, apply pressure to the cooling system with the tester.

Testing pressure.......................157 kPa (1.6 kg/cm2, 23 psi)

WARNING: Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure coolant escaping from the radiator.

CAUTION: Higher test pressure than specified may cause radiator damage.
