Fluid - Differential: Service and Repair

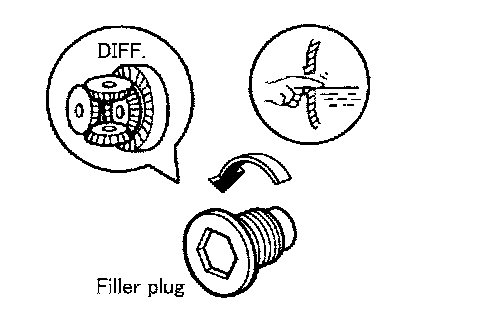

Changing Differential Gear Oil







1. Drain oil from drain plug and refill with new gear oil.
2. Check oil level.

Capacity: R200 1.4 L (3 US pt,2-1/2 Imp pt)

Drain plug: 30 - 39 Nm (3.1 - 3.9 kgf-cm, 55 - 61 ft. lbs.)

CAUTION: Gaskets are not reusable. Never reuse them.
