Auxiliary Power Outlet: Service and Repair

REMOVAL
1. Remove console box assembly. Service and Repair
2. Disconnect power socket connector.

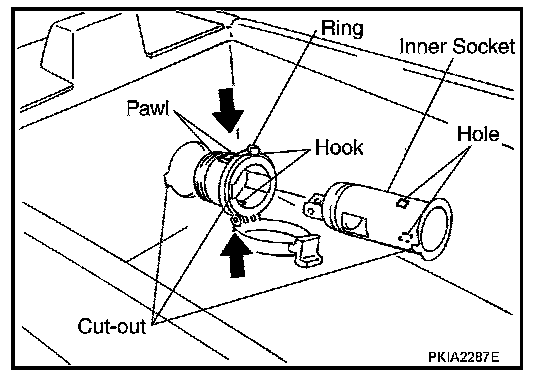

3. Remove inner socket from the ring, while pressing the hook on the ring out from square hole.
4. Remove ring from console box while pressing pawls.

INSTALLATION
Install in the reverse order of removal.
