Initial Inspection and Diagnostic Overview

Component Inspection

IGNITION COIL WITH POWER TRANSISTOR
1. Turn ignition switch OFF.
2. Disconnect ignition coil harness connector.

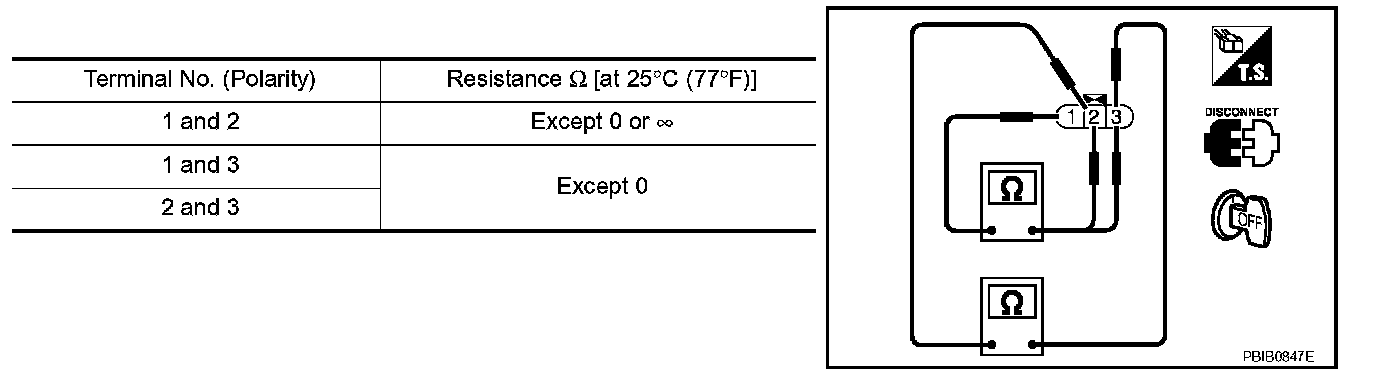

3. Check resistance between ignition coil terminals as shown.

CONDENSER
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.




3. Check resistance between condenser terminals 1 and 2.
