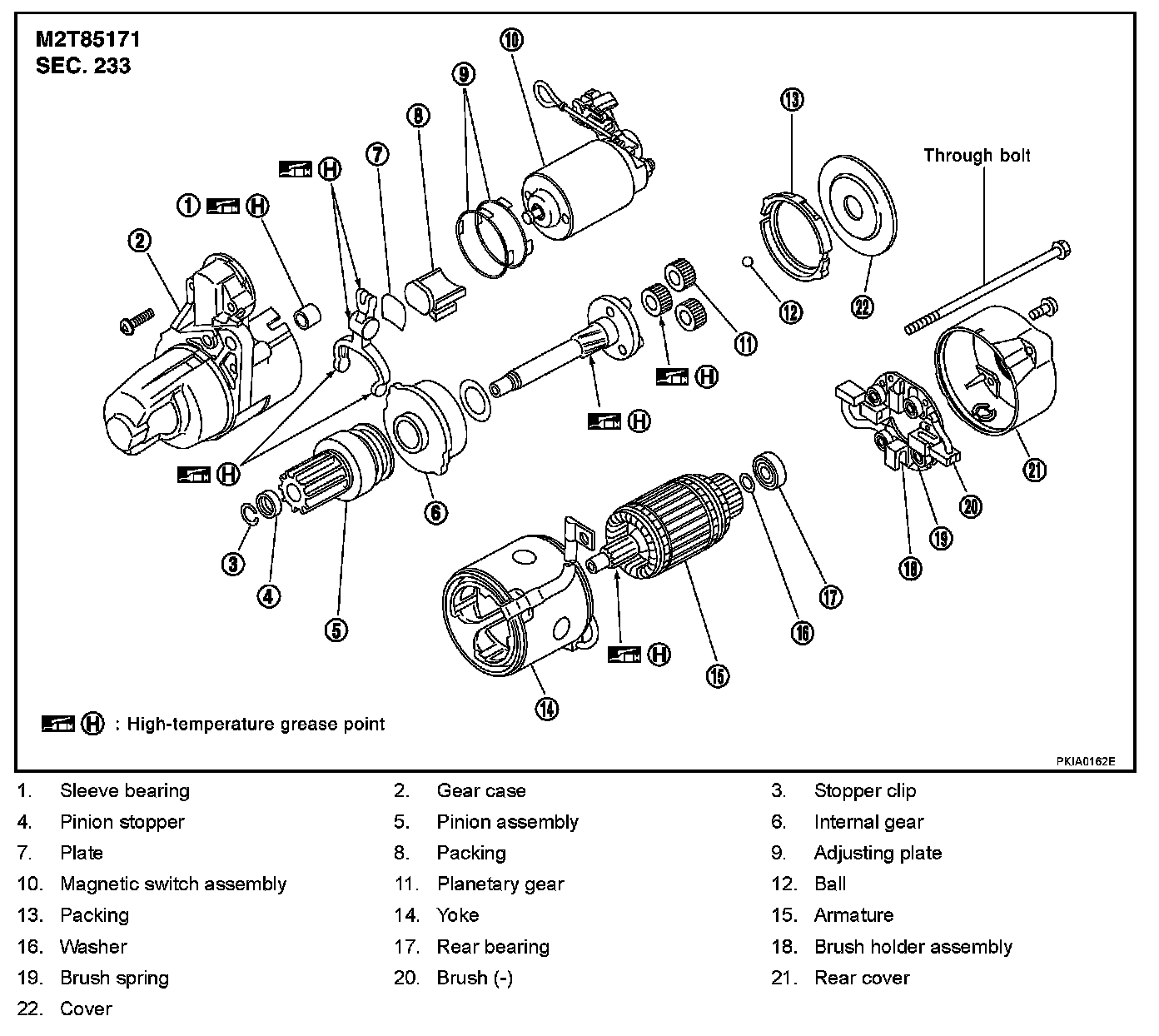

Disassembly and Assembly
Through bolt:
Tightening Torque:
5.6 - 10.4 N.m (0.57 - 1.06 kg-m, 49.5 - 92.0 in-lb)
