Removal and Installation

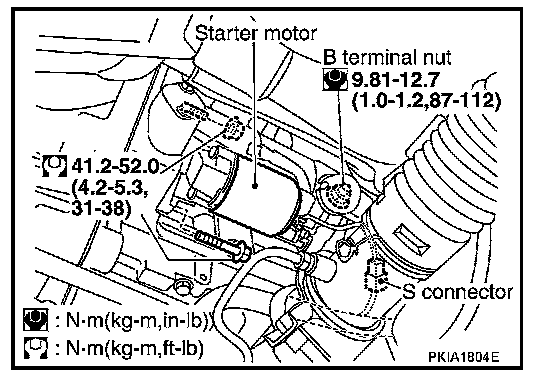

REMOVAL




1. Disconnect negative battery cable.
2. Remove engine undercover.
3. Disconnect S connector.
4. Remove B terminal nut.
5. Remove starter motor mounting bolt and nut.
6. Remove engine mounting insulator bottom nuts, and lift up of engine approximately 30 mm (1.18 in) by using mission jack.
7. Remove starter motor from under the vehicle.

INSTALLATION
Install in the reverse order of removal.

B terminal nut:
Tightening Torque: 9.81 - 12.7 N.m (1.0 - 1.2 kg-m, 87 - 112 in-lb)

Starter motor mounting bolt and nut:
Tightening Torque: 41.2 - 52.0 N.m (4.2 - 5.3 kg-m, 31 - 38 ft-lb)
