Windshield Washer Pump: Service and Repair

Removal and Installation for Washer Pump

REMOVAL
1. Remove fender protector. Refer to "FENDER PROTECTOR".
2. Disconnect washer pump connector and tube.

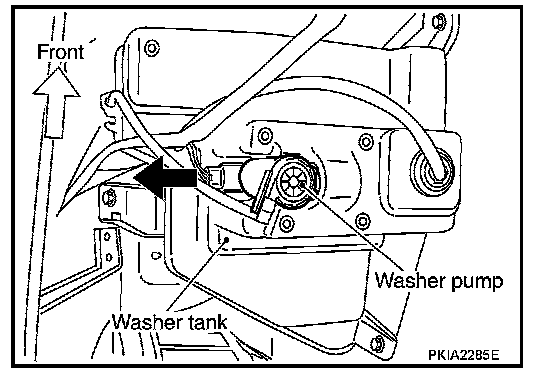

3. Pull out washer pump in direction shown by the arrow in the figure. Remove washer pump from washer tank.

INSTALLATION
Paying attention to the following, install in the reverse order of removal.

CAUTION: When installing washer pump, there should be no packing twists, etc.
