Windshield Washer Switch: Service and Repair

Removal and Installation for Front Wiper and Washer Switch




REMOVAL
1. Remove steering column cover. Service and Repair
2. Disconnect wiper and washer switch connector.

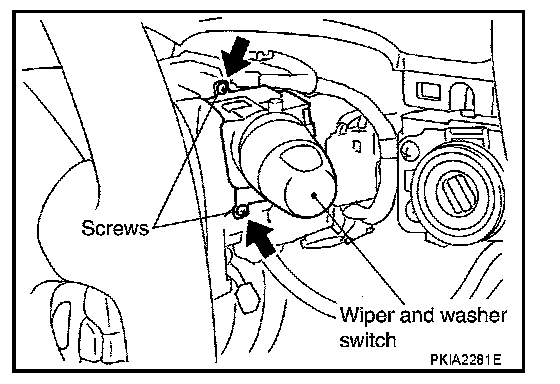

3. Pull wiper and washer switch toward the passenger door while removing screws in direction shown by the arrow in the figure, and remove it from the base.

INSTALLATION
Install in the reverse order of removal.
