Data Monitor Mode

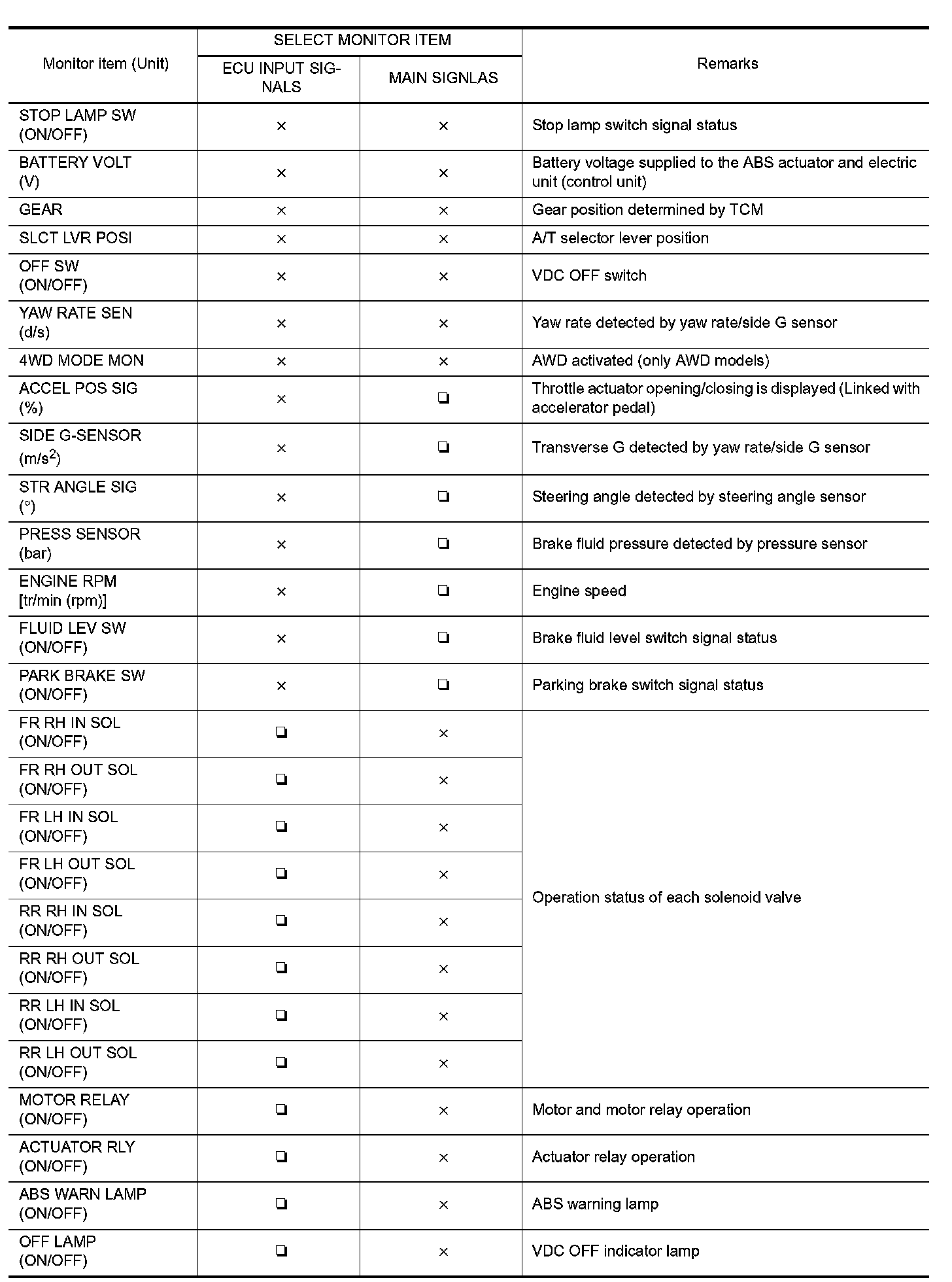

Display Item List (Part 1):

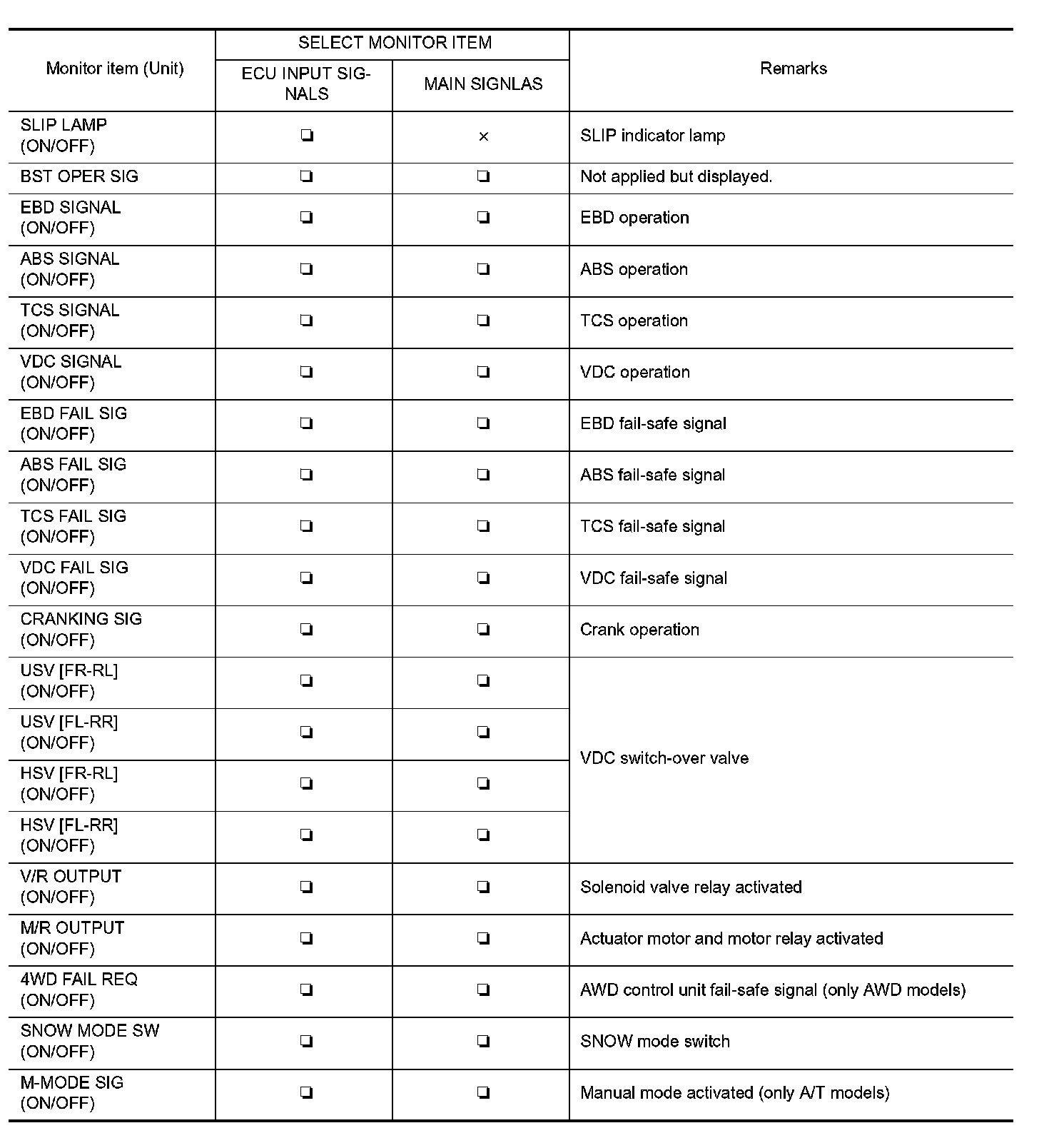

Display Item List (Part 2):

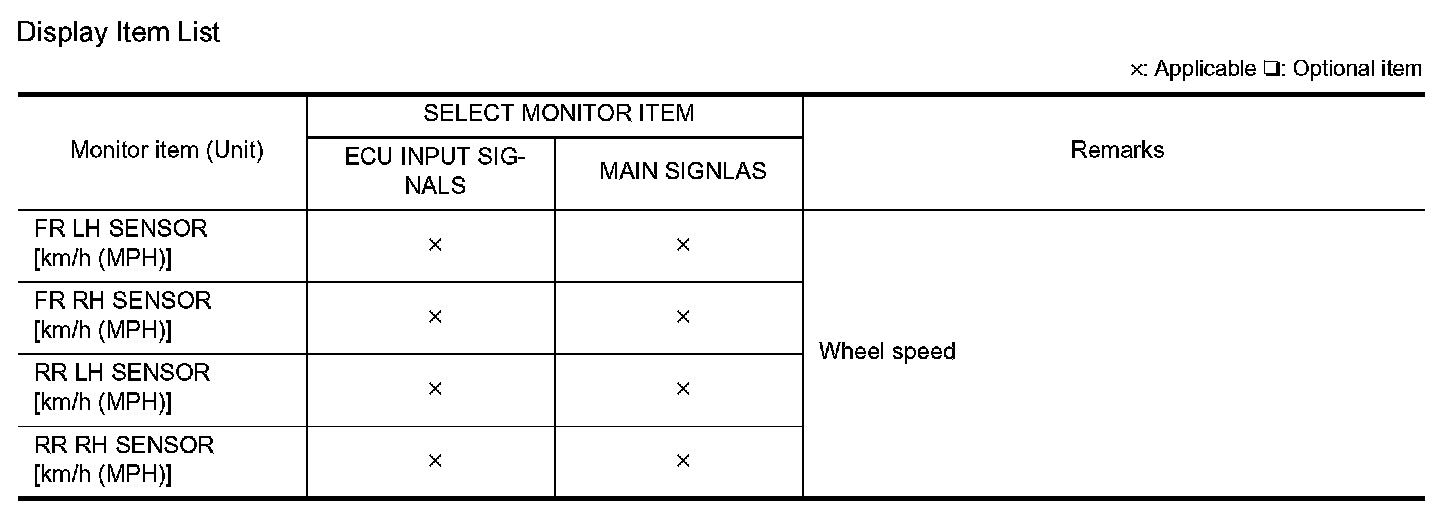

Display Item List (Part 3):
