Ambient Temperature Sensor / Switch HVAC: Service and Repair

AMBIENT SENSOR

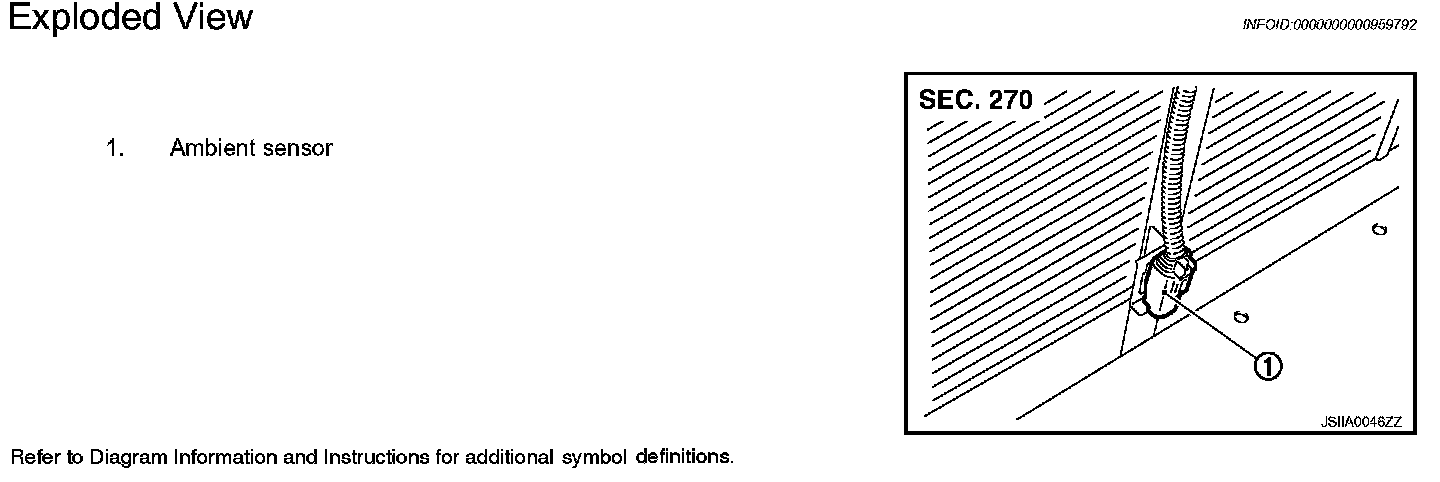

Exploded View VTL-25:

Exploded View

Removal and Installation

REMOVAL
1. Remove front grille.

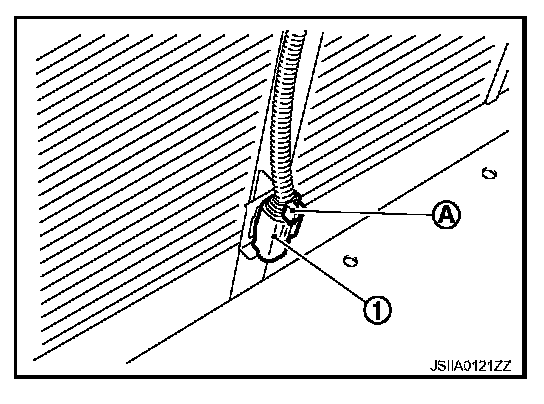

2. Disconnect ambient sensor connector (A), and then remove ambient sensor (1).

INSTALLATION
Installation is basically the reverse order of removal.
