Map Light: Service and Repair
ON-VEHICLE REPAIRMAP LAMP

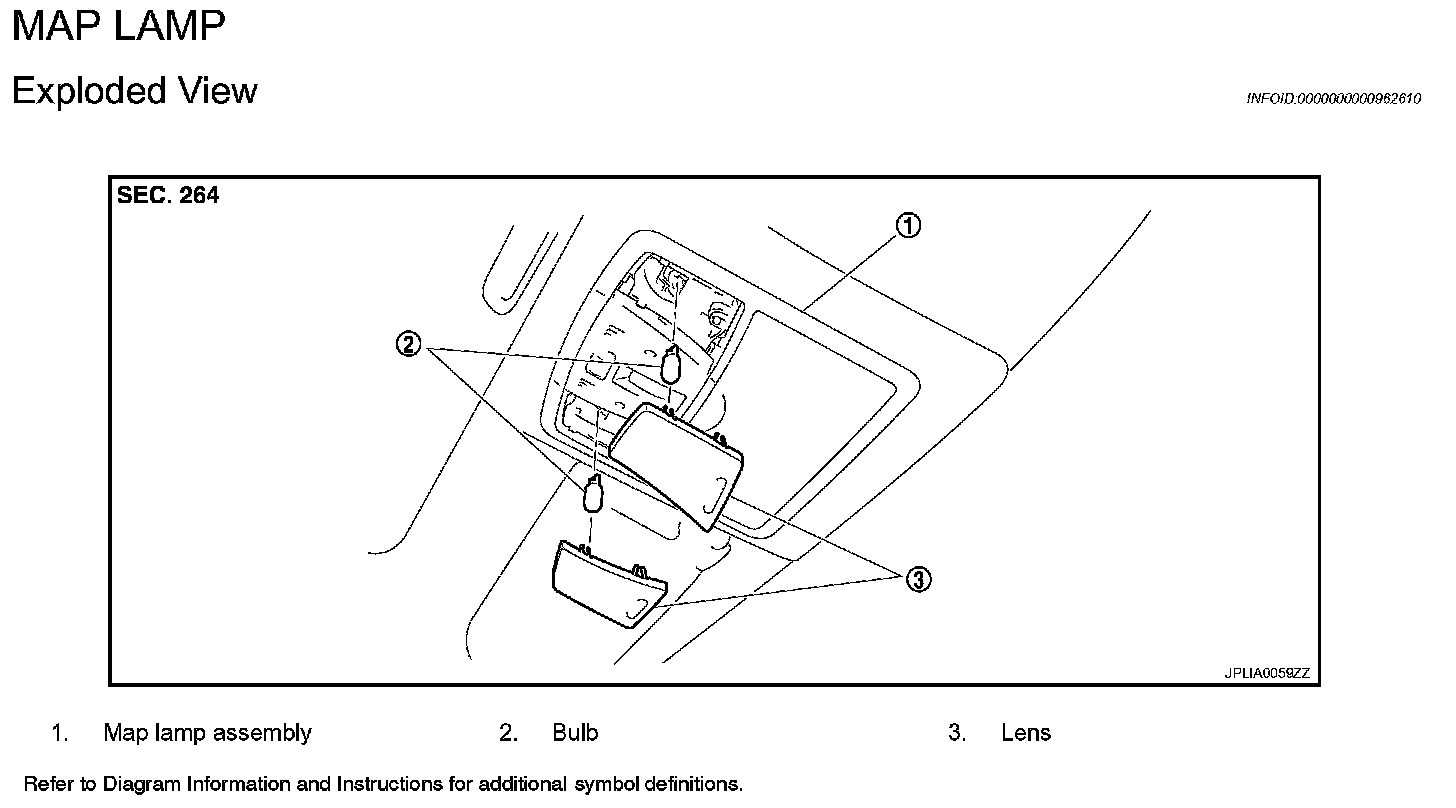

Exploded View INL-96:
Exploded View
Replacement
CAUTION: Disconnect the battery negative terminal or the fuse.
MAP LAMP BULB
1. Insert any appropriate tool into the gap between the lens. Remove the lens.
2. Remove the bulb.
