Home >> Infiniti >> 2007 >> G35 Sedan V6-3.5L (VQ35HR) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> Valve, Intake/Exhaust

Valve, Intake/Exhaust

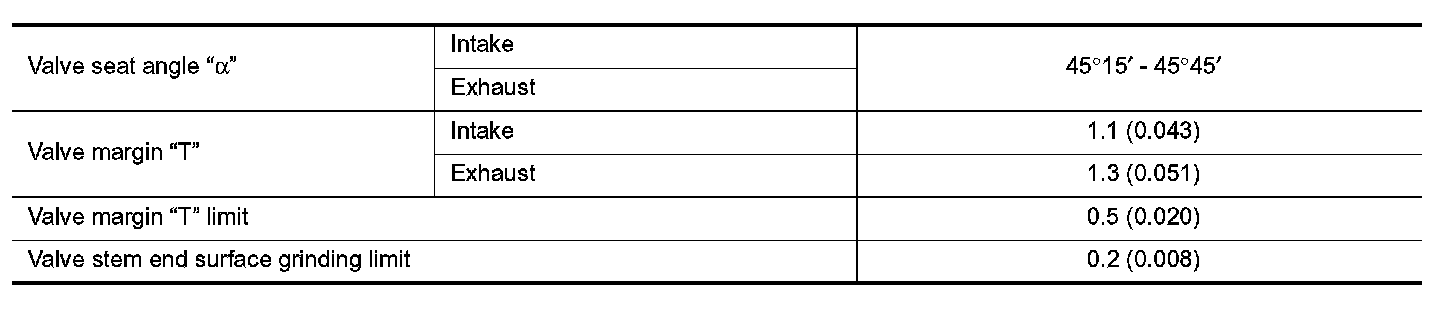

Part 1:

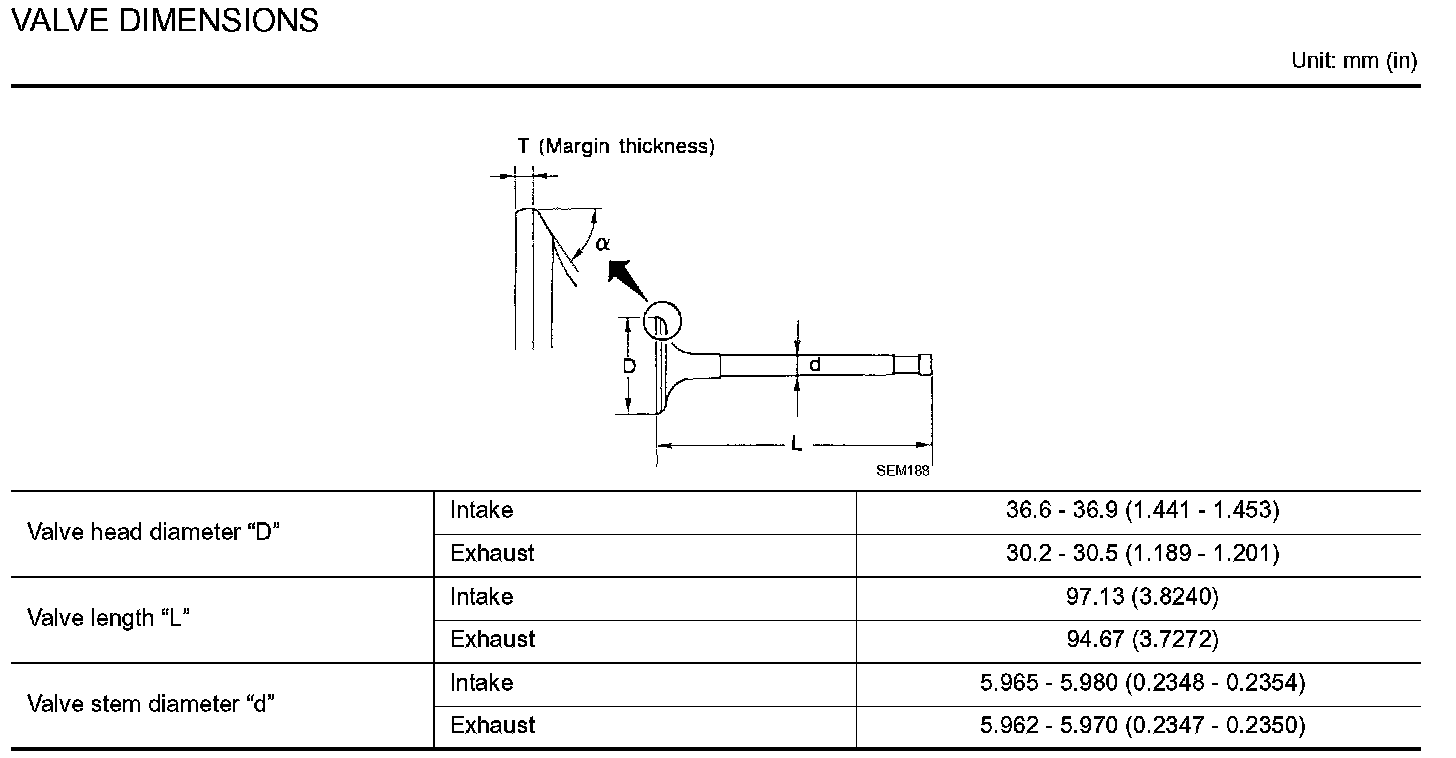

Part 2:
