Main Bearing Cap

Main Bearing Cap

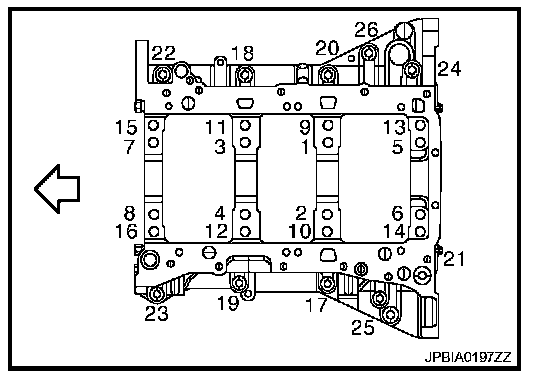

Tighten lower cylinder block bolts (No. 1 to 16) in numerical order as shown in the figure.

Torque 35.3 Nm (3.6 kg-m, 26 ft-lb)

Turn lower cylinder block bolts (No. 1 to 16) 90 degrees clockwise (angle tightening).

Completely loosen lower cylinder block bolts (No. 1 to 16).
.
Torque 0 Nm (0 kg-m, 0 ft-lb)





Tighten lower cylinder block bolts (No. 1 to 16) in numerical order as shown in the figure.

Torque 35.3 Nm (3.6 kg-m, 26 ft-lb)

Turn lower cylinder block bolts (No. 1 to 16) 90 degrees clockwise (angle tightening).

Tighten lower cylinder block bolt (No. 17 to 26).

Torque 22.0 Nm (2.2 kg-m, 16 ft-lb)

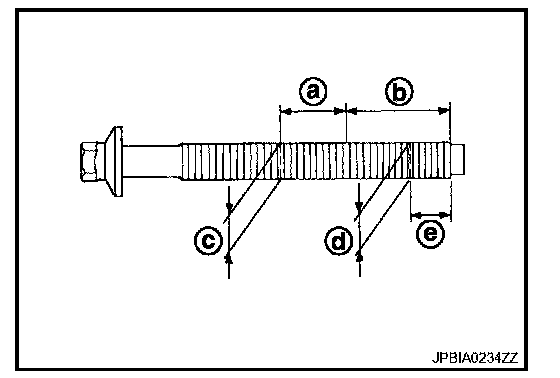

LOWER CYLINDER BLOCK BOLT OUTER DIAMETER





Measure the outer diameters (c), (d) at two positions as shown in the figure.
a 20 mm (0.79 in)
b 30 mm (1.18 in)
e 10 mm (0.39 in)
If reduction appears in (a) range, regard it (d) as (c).
Limit [(c) - (d)] 0.11 mm (0.0043 in)
If it exceeds the limit (large difference in dimensions), replace lower cylinder block bolt with new one.
