Battery Cable: Service and Repair

BATTERY TERMINAL WITH FUSIBLE LINK

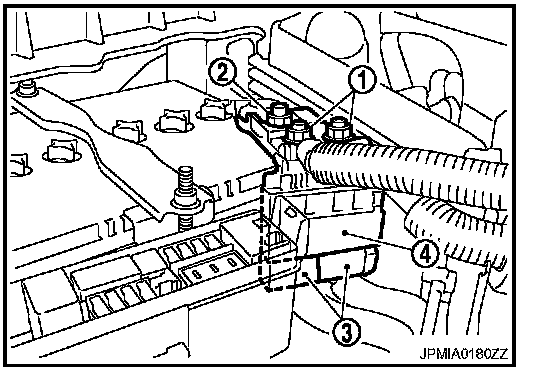

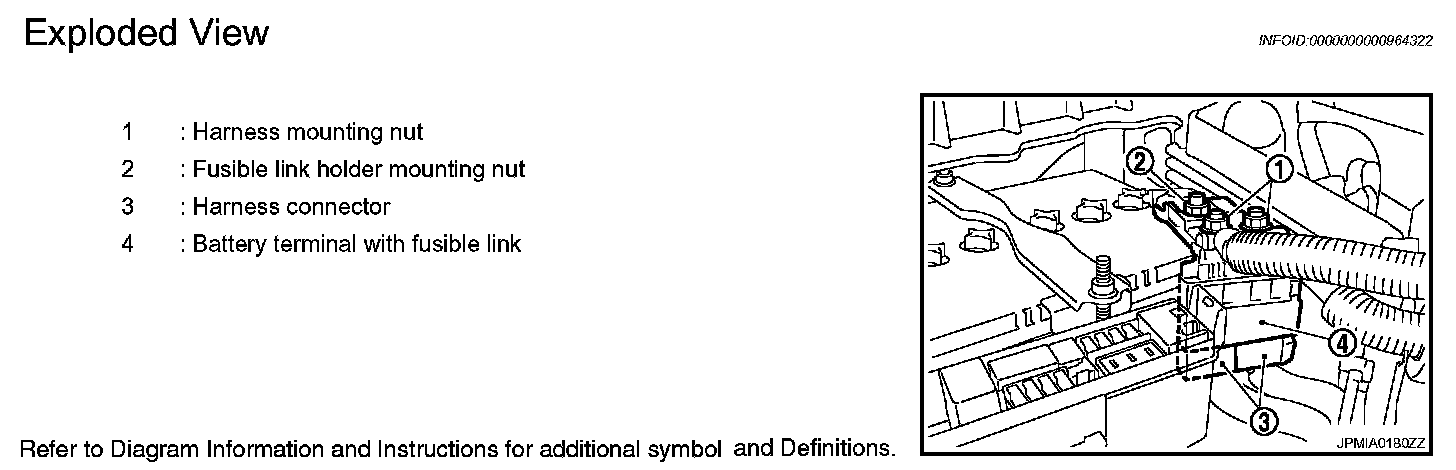

Exploded View PG-99:

Removal and Installation

REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove cover of battery positive terminal.




3. Remove harness mounting nuts (1) to disconnect harness connector (3).
4. Remove fusible link holder mounting nut (2) to disconnect battery terminal with fusible link (4).

INSTALLATION
Install in the reverse order of removal.

Harness mounting nut: 13.2 N.m (1.3 kg-m, 10 ft-lb)
Fusible link holder mounting nut: 13.2 N.m (1.3 kg-m, 10 ft-lb)
