4WAS Main Control Unit

4WAS MAIN CONTROL UNIT

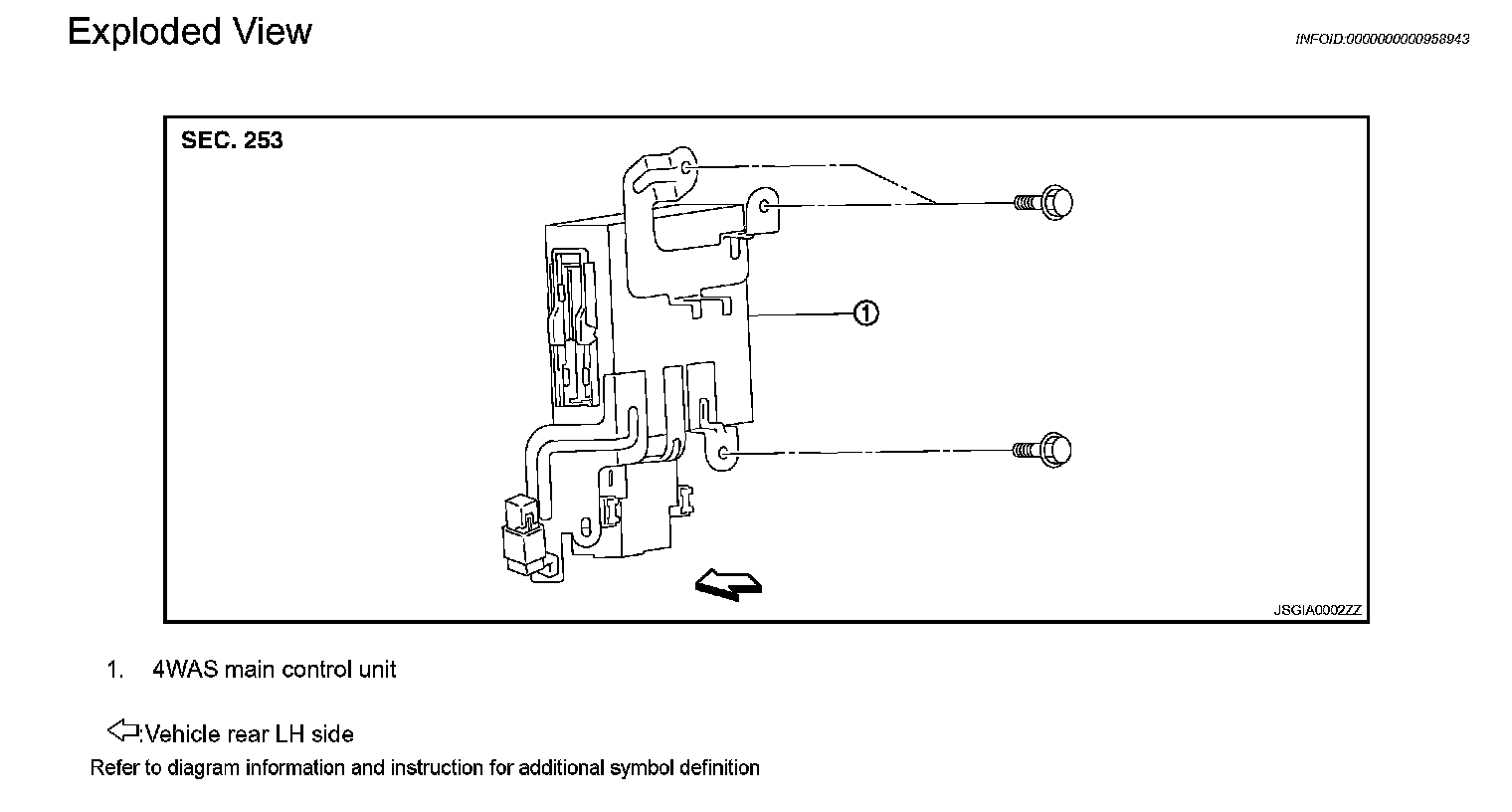

Exploded View STC-178:

Removal and Installation
1. Turn the ignition switch OFF.
2. Remove the trunk side finisher.
3. Disconnect 4WAS main control unit connectors, 4WAS rear motor relay connector and noise suppressor connectors.

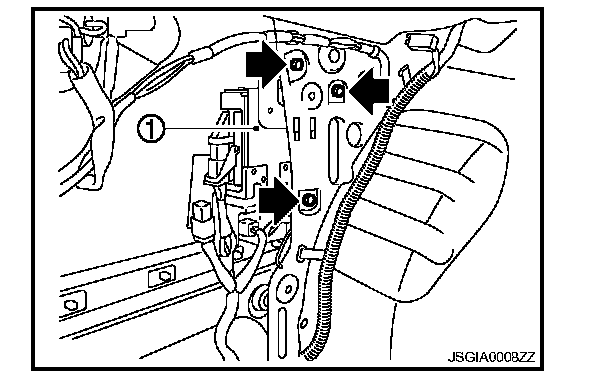

4. Remove the 4WAS main control unit bolts.
5. Remove the 4WAS main control unit (1).

INSTALLATION
Install in the reverse order of removal.
