Steering Control Module: Testing and Inspection
ECU DIAGNOSISPOWER STEERING CONTROL UNIT
Reference Value

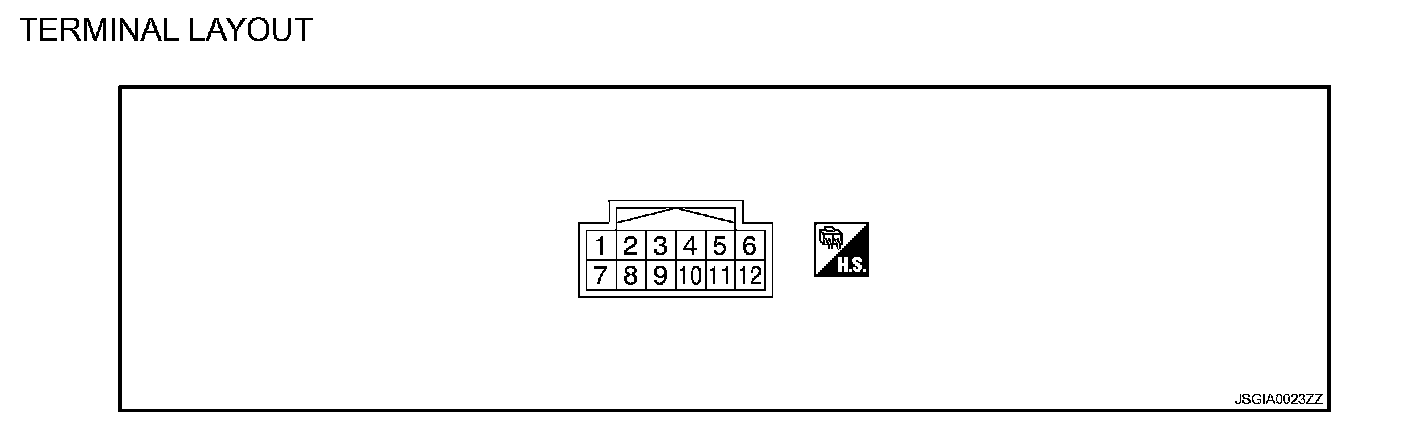

TERMINAL LAYOUT

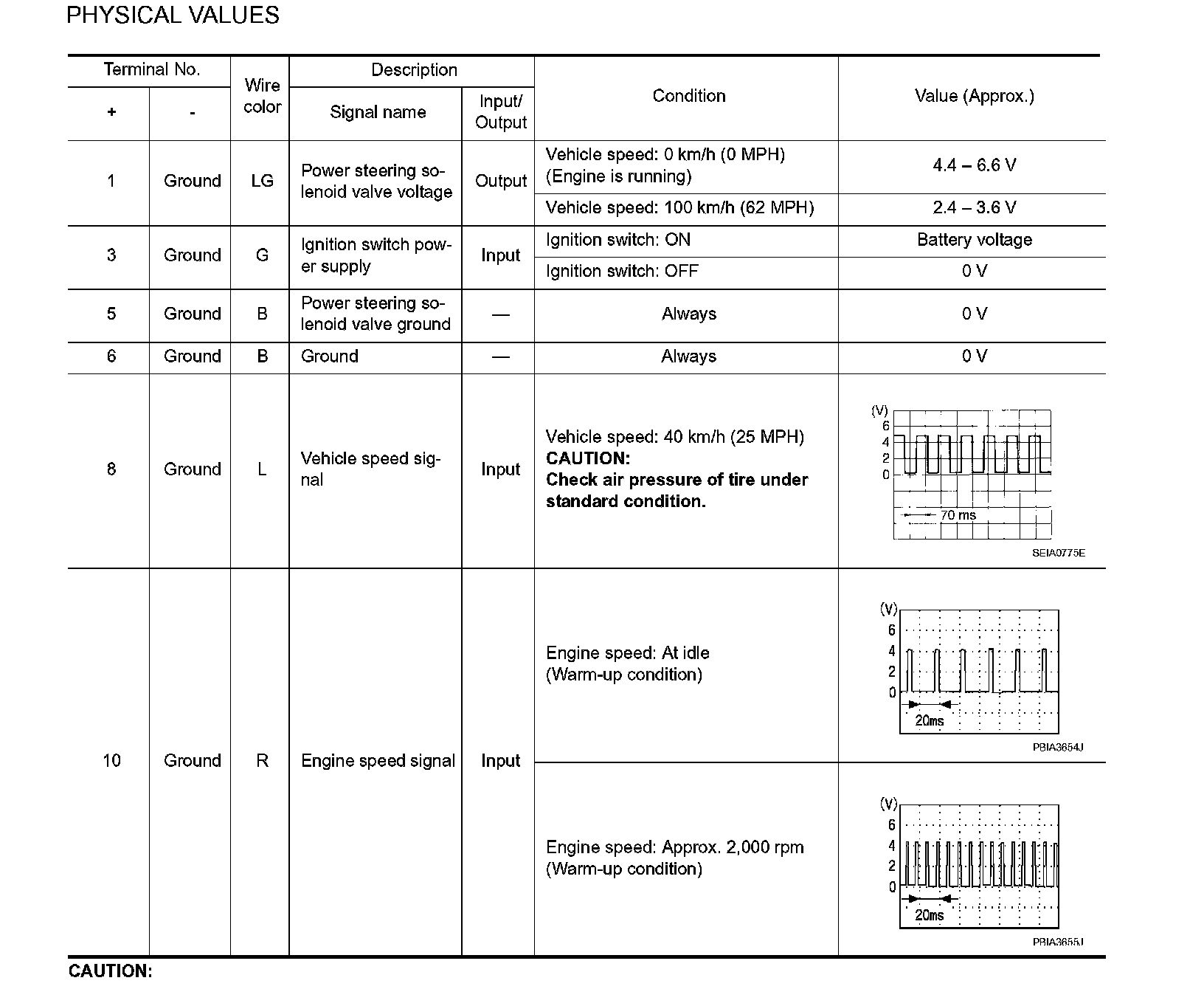

PHYSICAL VALUES
CAUTION: When using circuit tester or oscilloscope to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
