4WAS Front Control Unit
ACTIVE TEST MODEDescription
^ 4WAS front actuator assembly activation is checked according to the control signal from CONSULT-III.

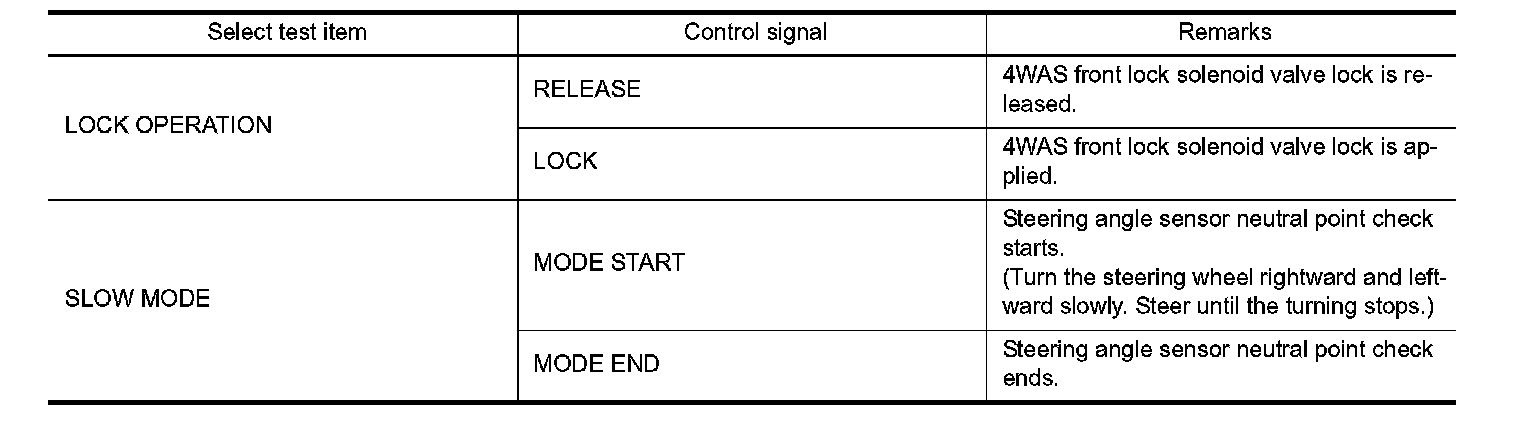

^ 4WAS front lock solenoid valve (lock structure) activates forcibly (ON/OFF) with each control signal of "LOCK OPERATION". Perform this mode when performing 4WAS front actuator adjustment.
CAUTION: Never steer the steering wheel during "RELEASE".
^ The steering angle sensor neutral point judgment (OK/NG) is performed with each control signal of "SLOW MODE".
