4WAS Main Control Unit
ACTIVE TEST MODEDescription

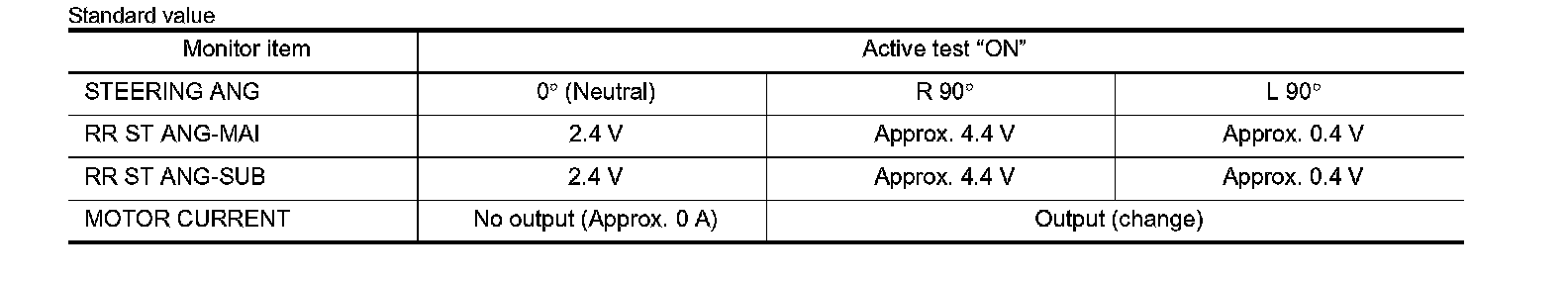

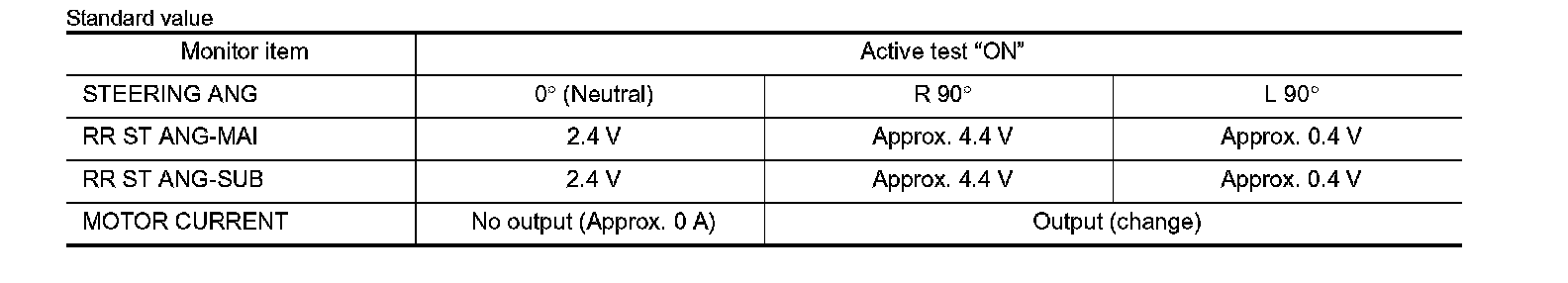

^ 4WAS rear actuator assembly activation is checked according to the control signal from CONSULT-III
^ The control signal forcibly activates (ON/OFF) 4WAS rear assembly, performs the self-diagnosis and checks each sensor in "SELF DIAGNOSTIC MODE".
CAUTION: Perform the active test while the vehicle is stopped.
