Power Steering Line/Hose: Service and Repair

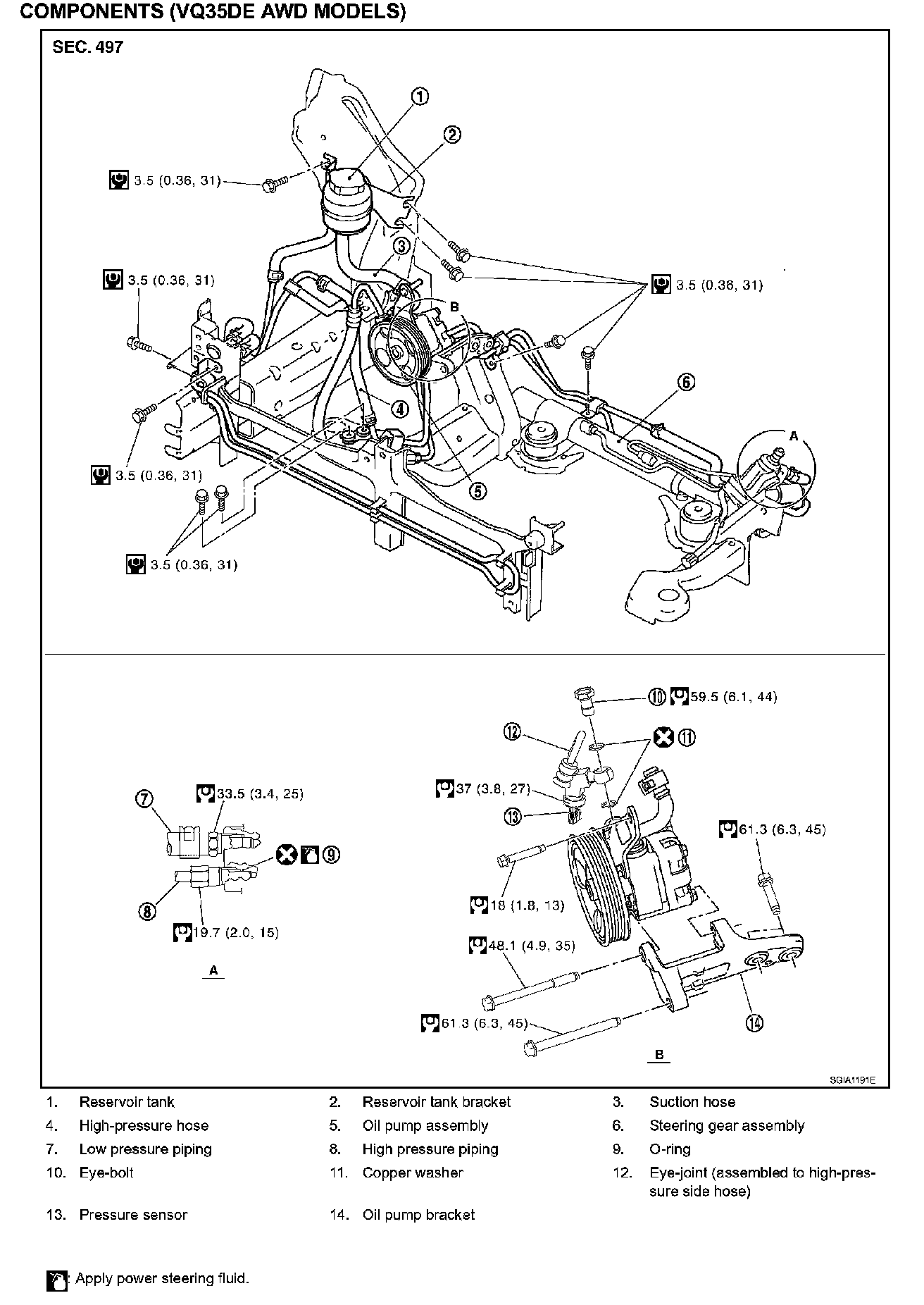

Exploded View PS-41 (Part 1):

Exploded View PS-41 (Part 2):

CAUTION:
^ Securely insert harness connector to pressure sensor.

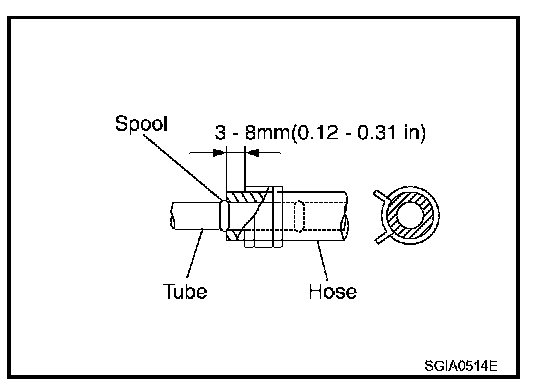

^ Insert hose securely until it contacts tube spool (Do not apply fluid).

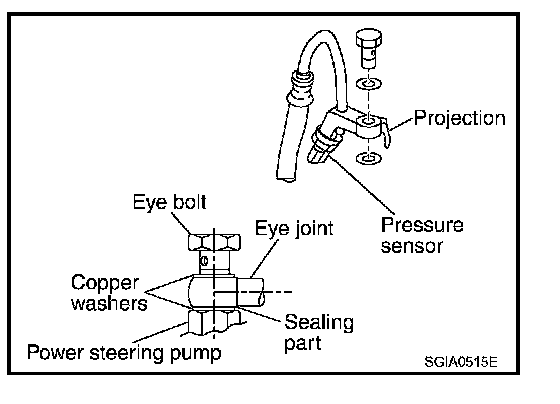

^ Install eye-bolt with eye-joint (assembled to high-pressure hose) protrusion facing with pump side cutout, and then tighten it to the specified torque after tightening by hand.
