Body and Frame
>>
Bumper
>>
Front Bumper
>>
Service and Repair
>>
Exploded View
Exploded View
FRONT
BUMPER
Exploded View

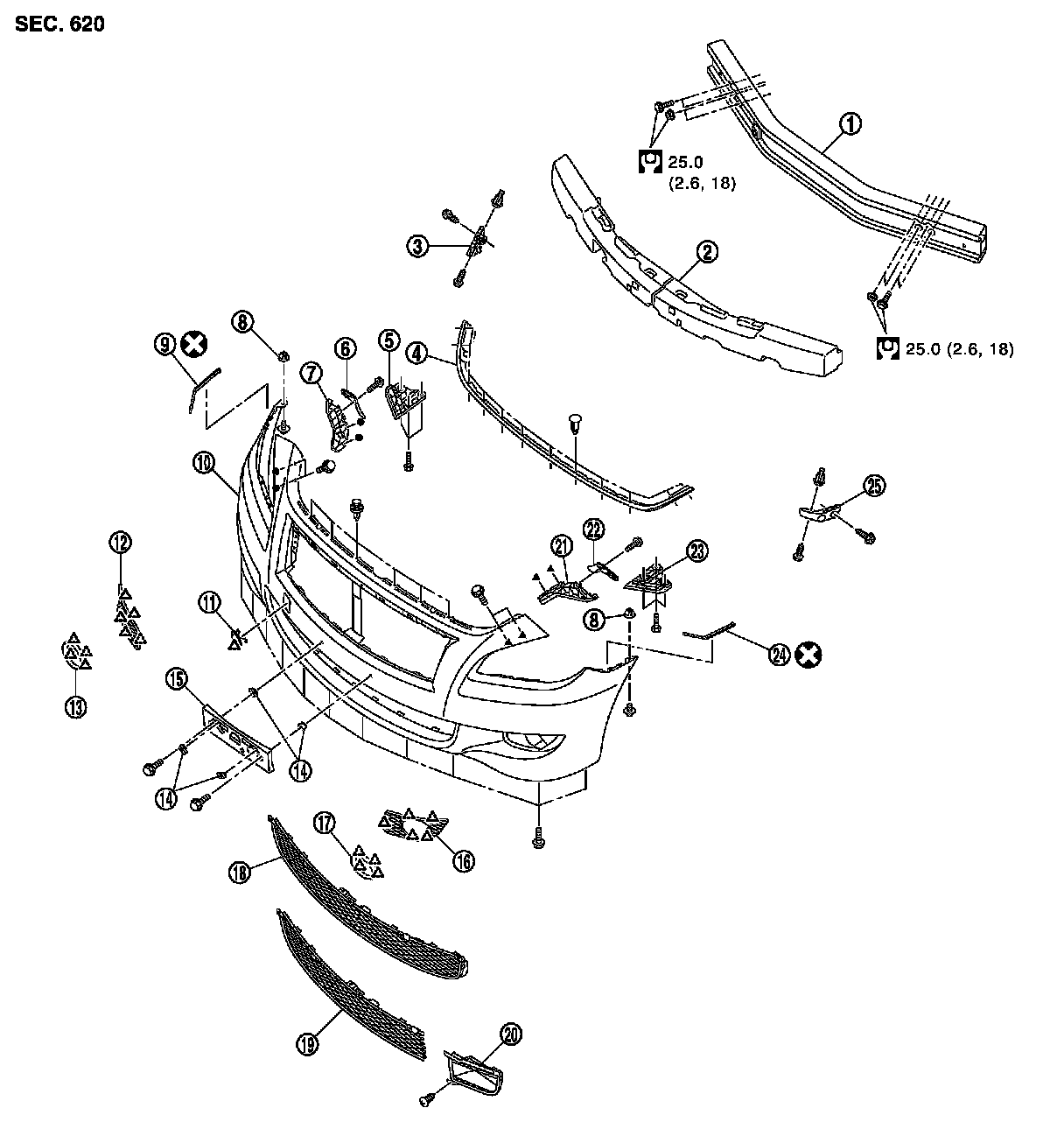

STANDARD TYPE

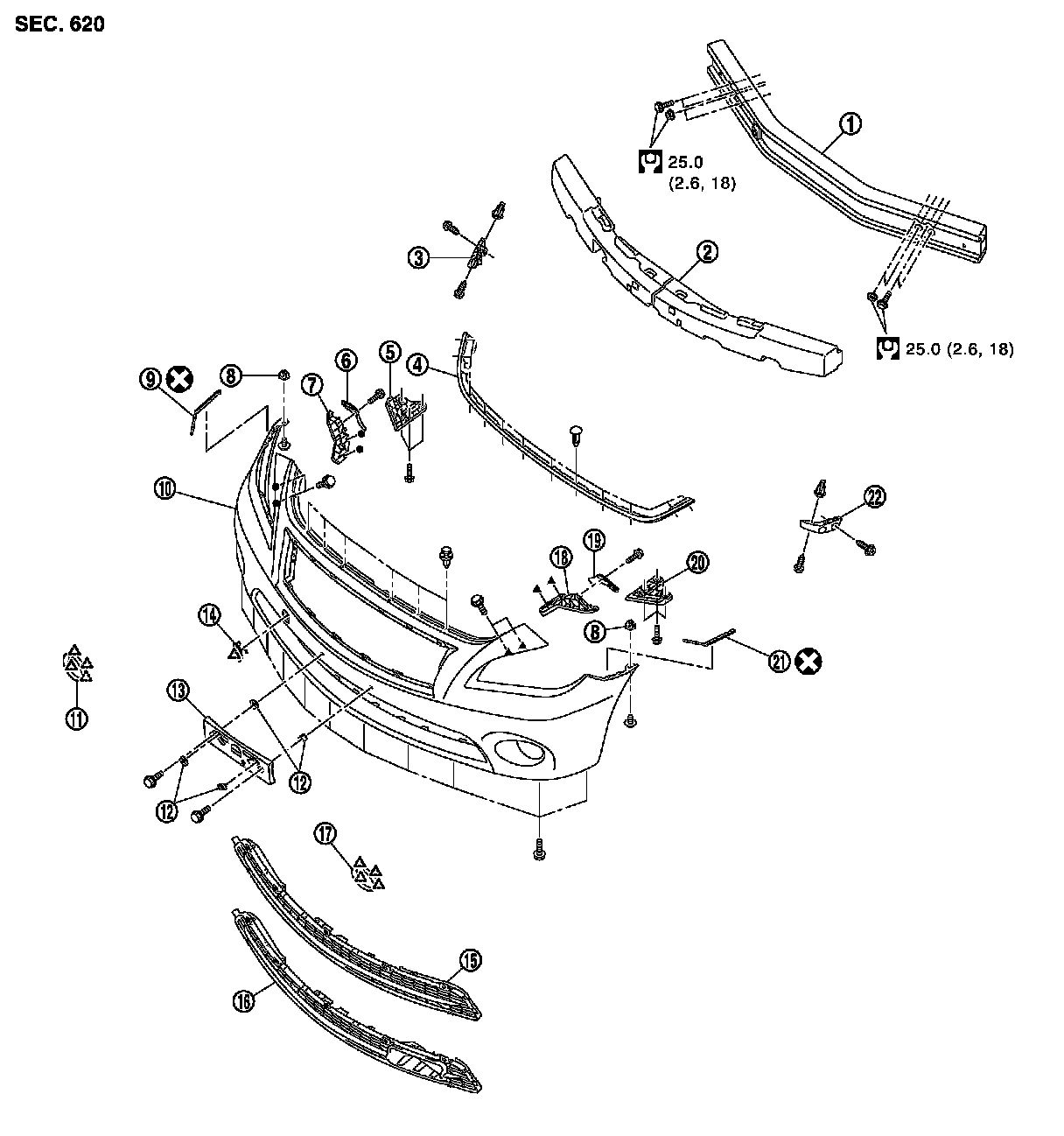

SPORTS TYPE
