Transfer Case
Transfer Case

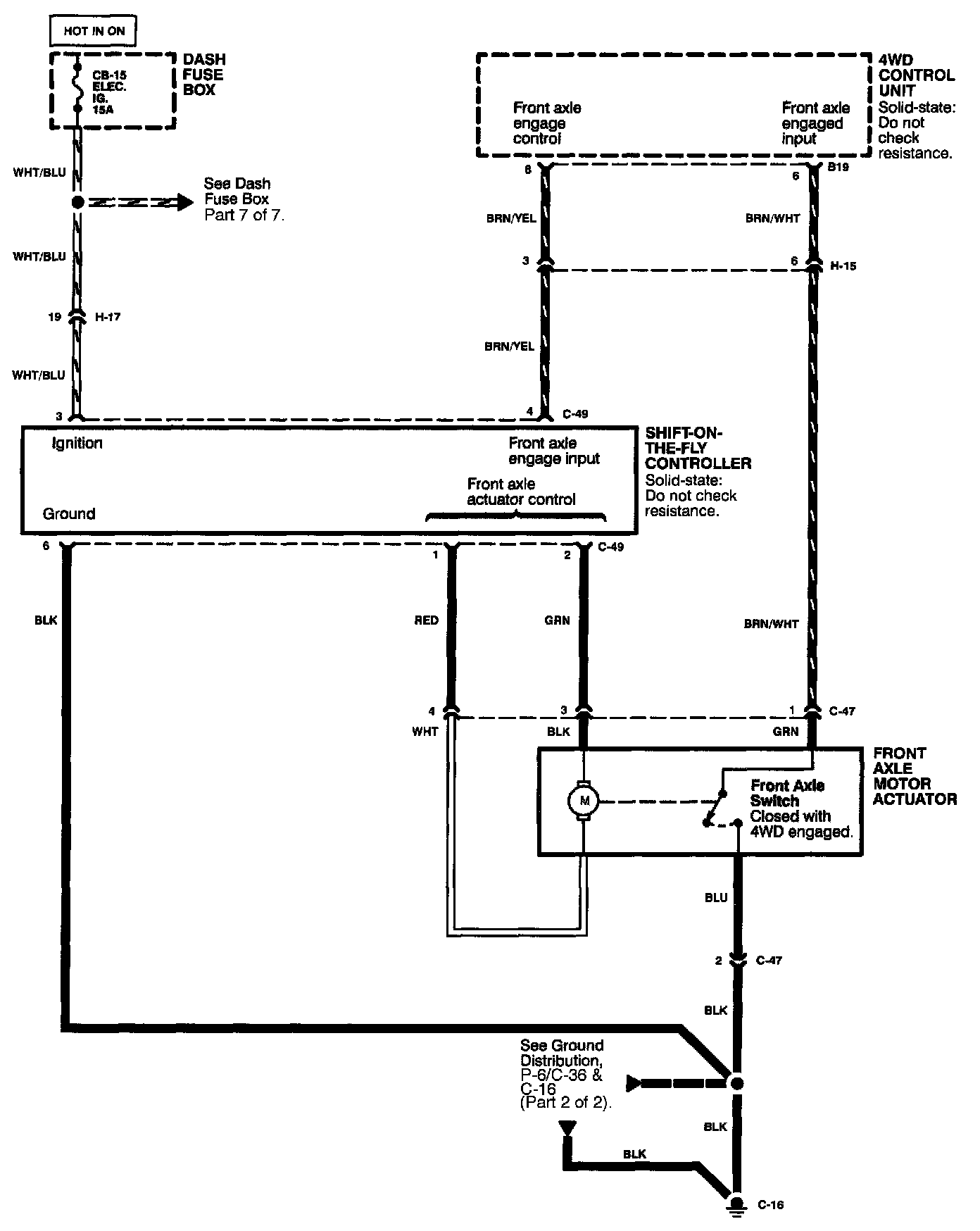

Shift-On-The-Fly System (1 Of 3):

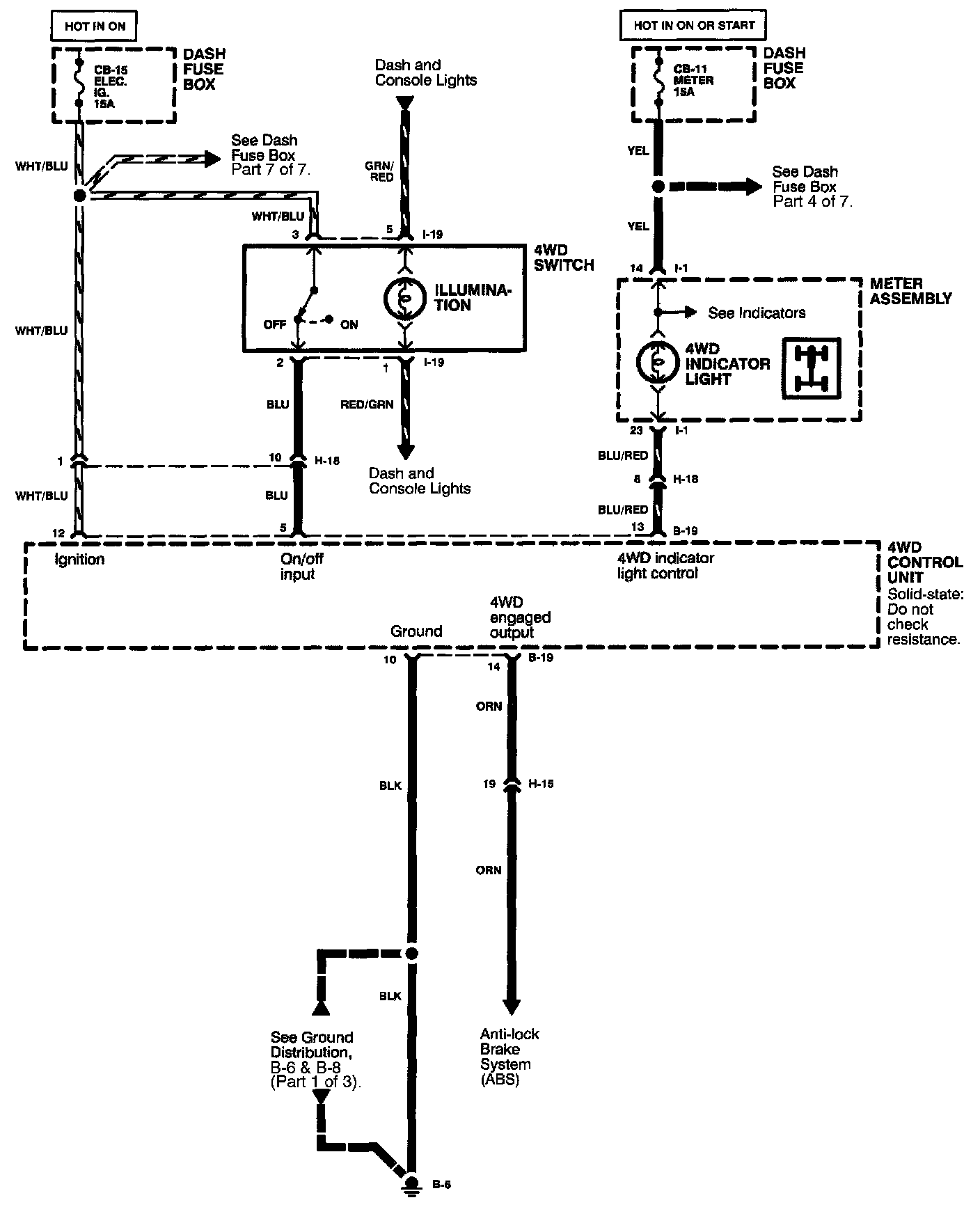

Shift-On-The-Fly System (2 Of 3):

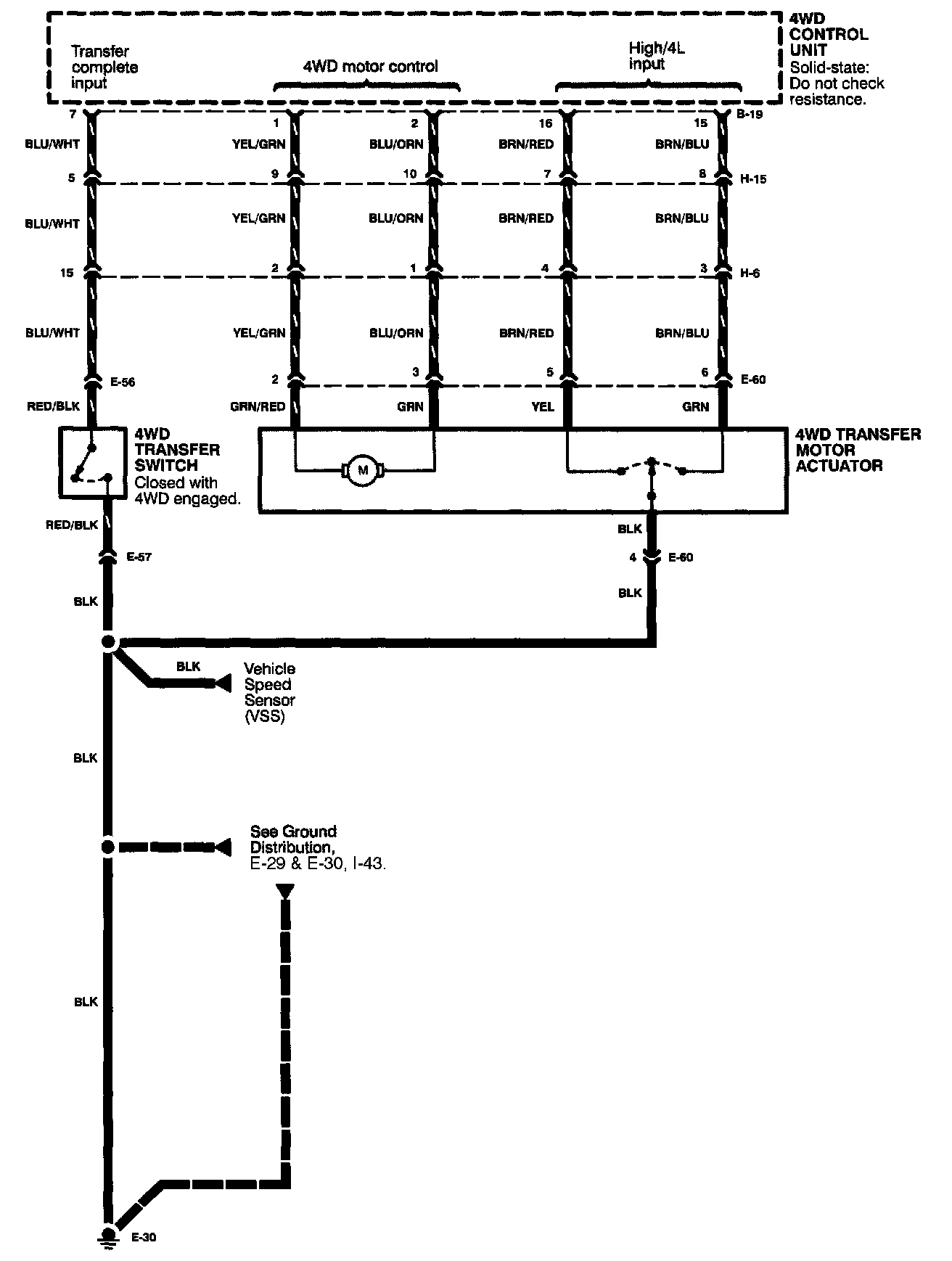

Shift-On-The-Fly System (3 Of 3):
