Isuzu Truck
>>
2001
>>
Rodeo S 2WD L4-2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

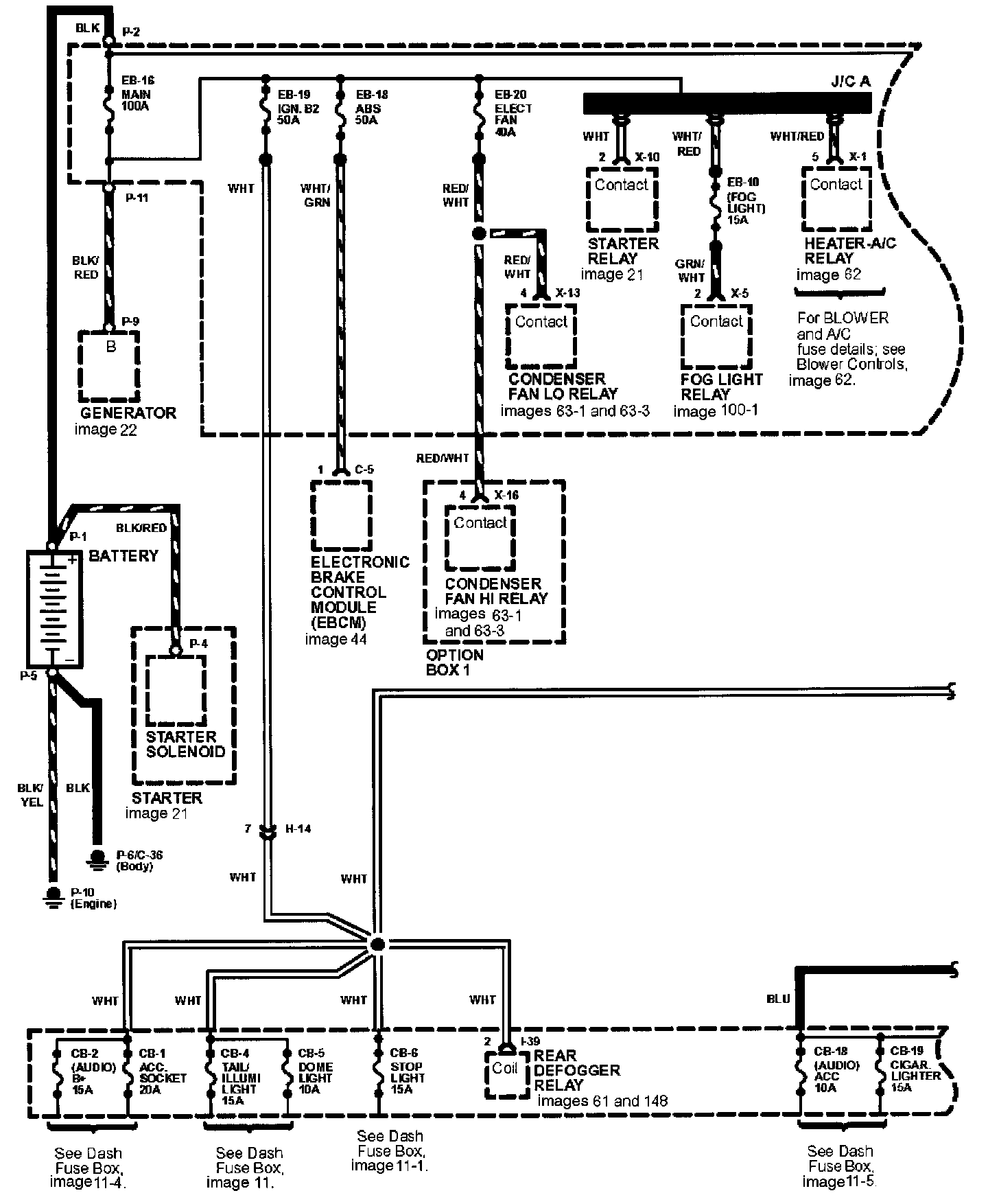

Power Distribution Image 10:

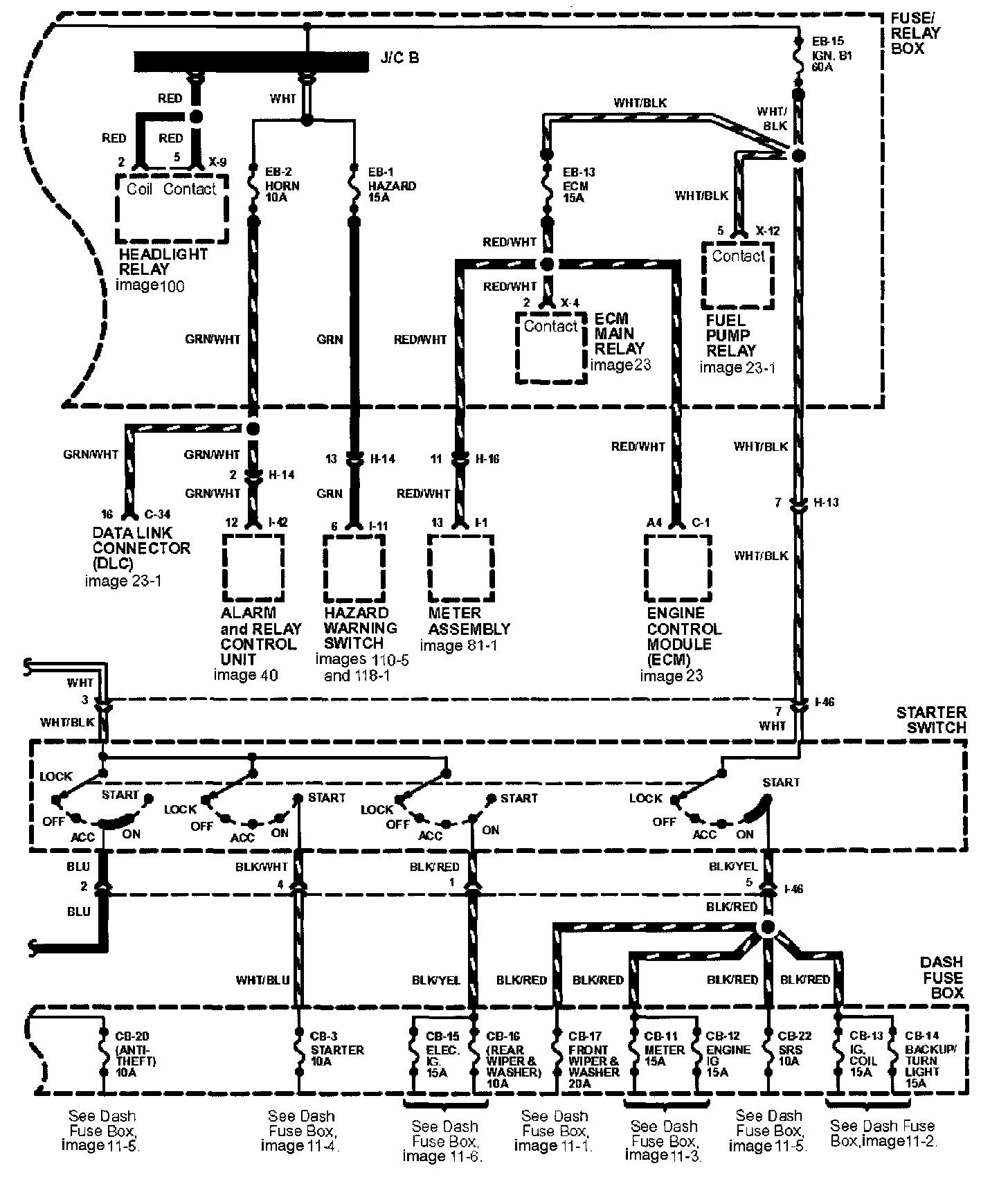

Power Distribution Image 10-1:
