Home >> Isuzu Truck >> 2001 >> Rodeo Sport 2WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Map Light

Map Light

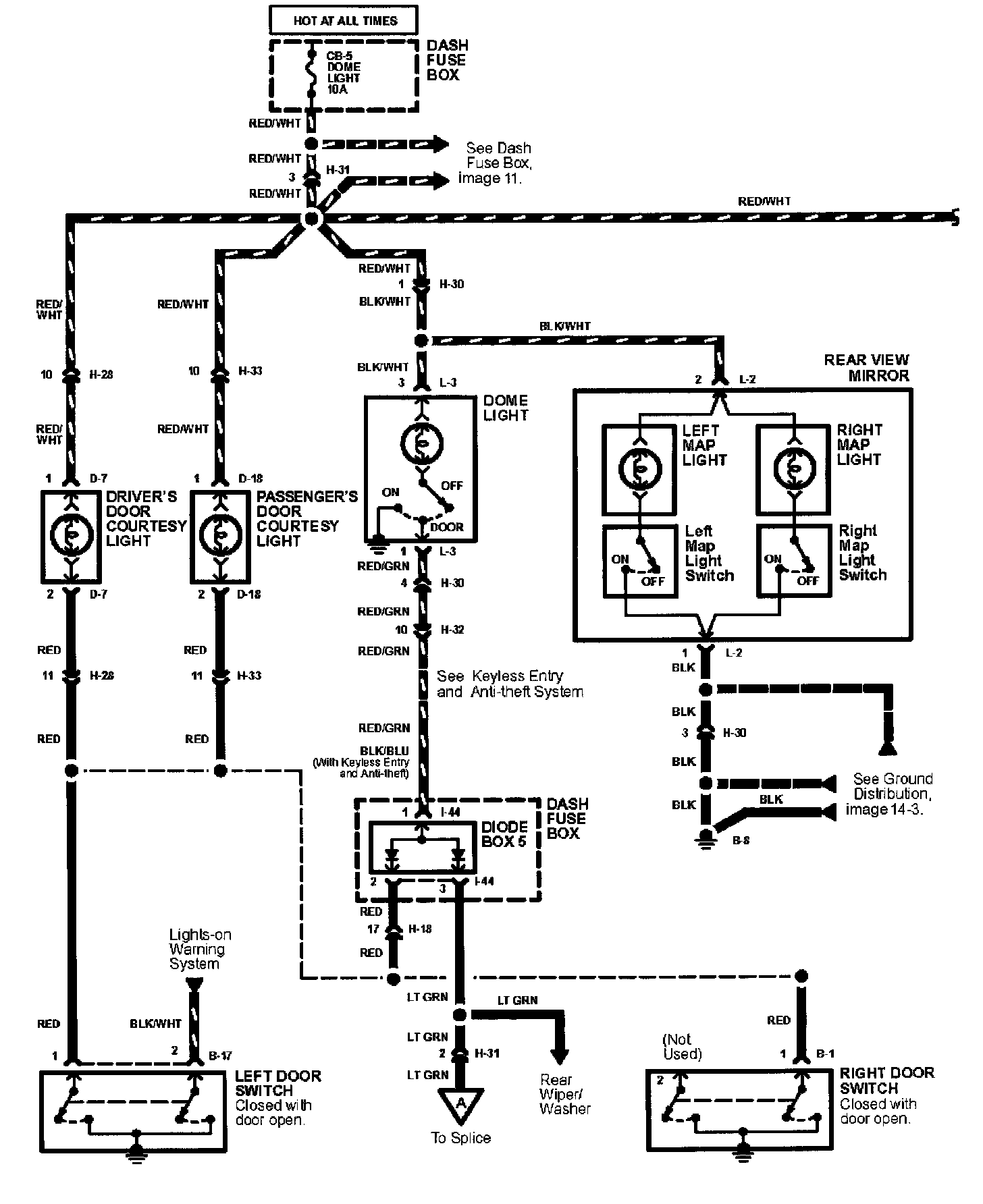

Dome, Luggage Room, Courtesy, And Map Lights Image 114-4:



Dome, Luggage Room, Courtesy, And Map Lights Image 114-5:
