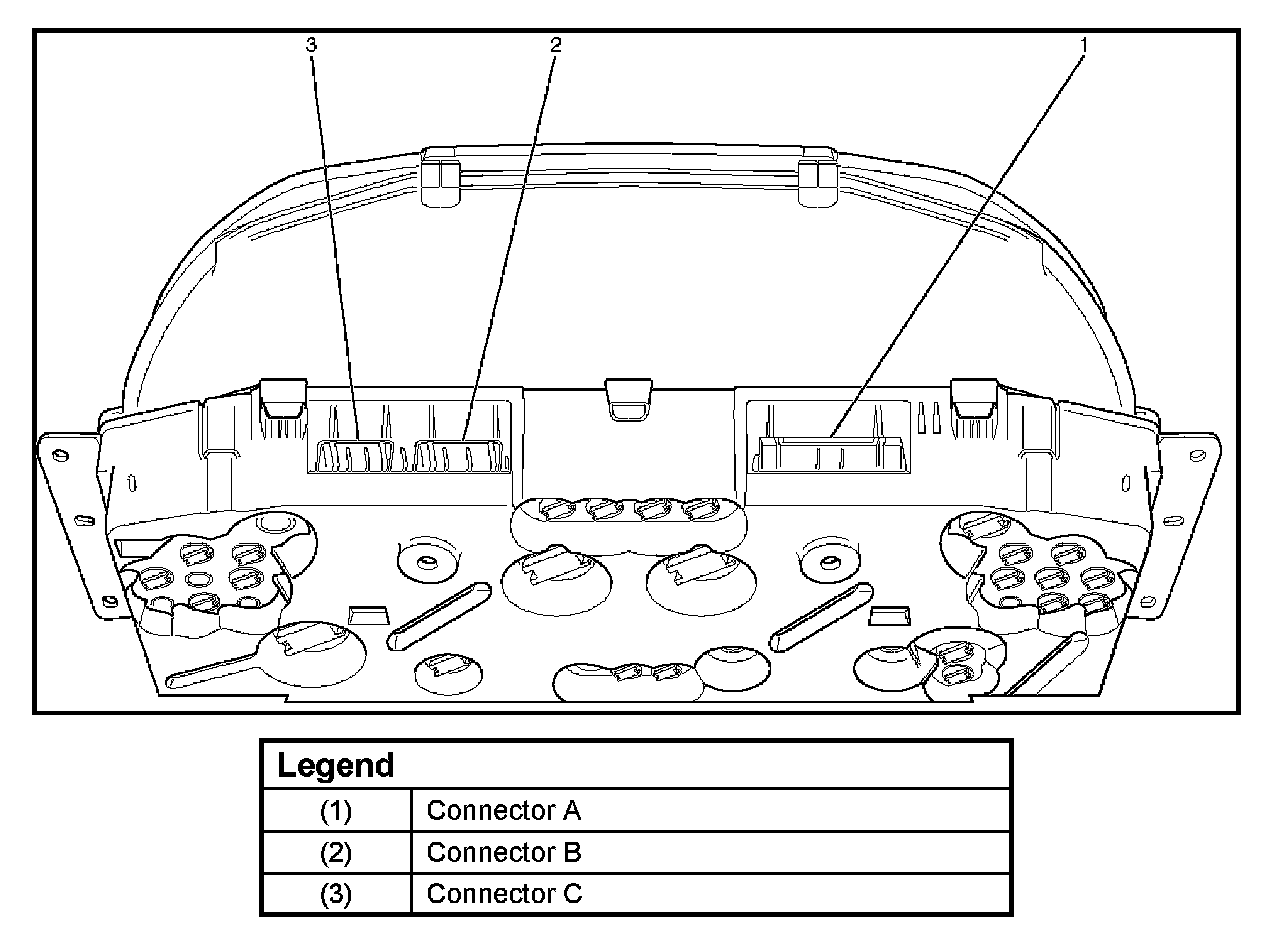

Instrument Panel, Gauges and Warning Indicators

Table For Meter/Gauge Connector Terminal Conditions:

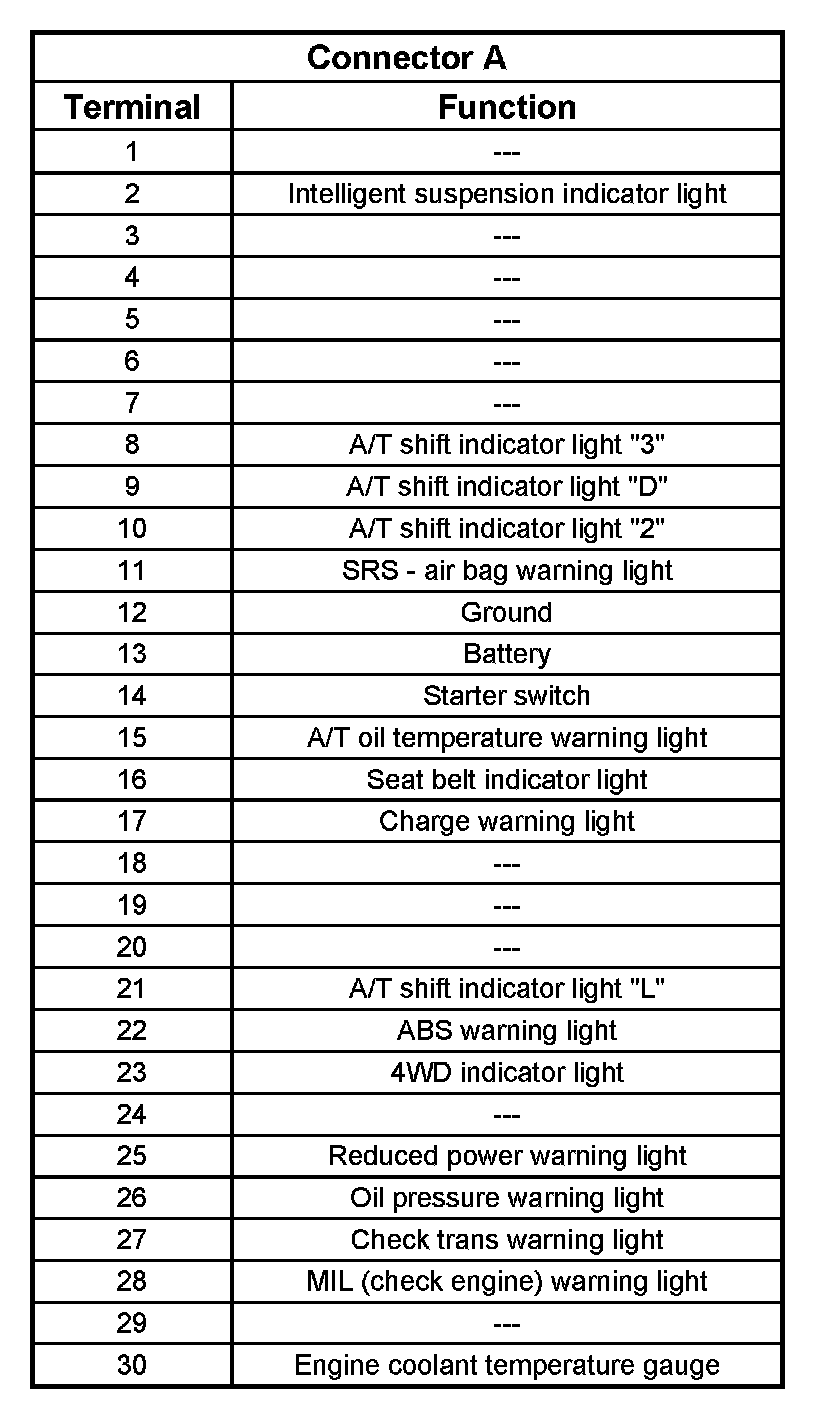

Connector A:

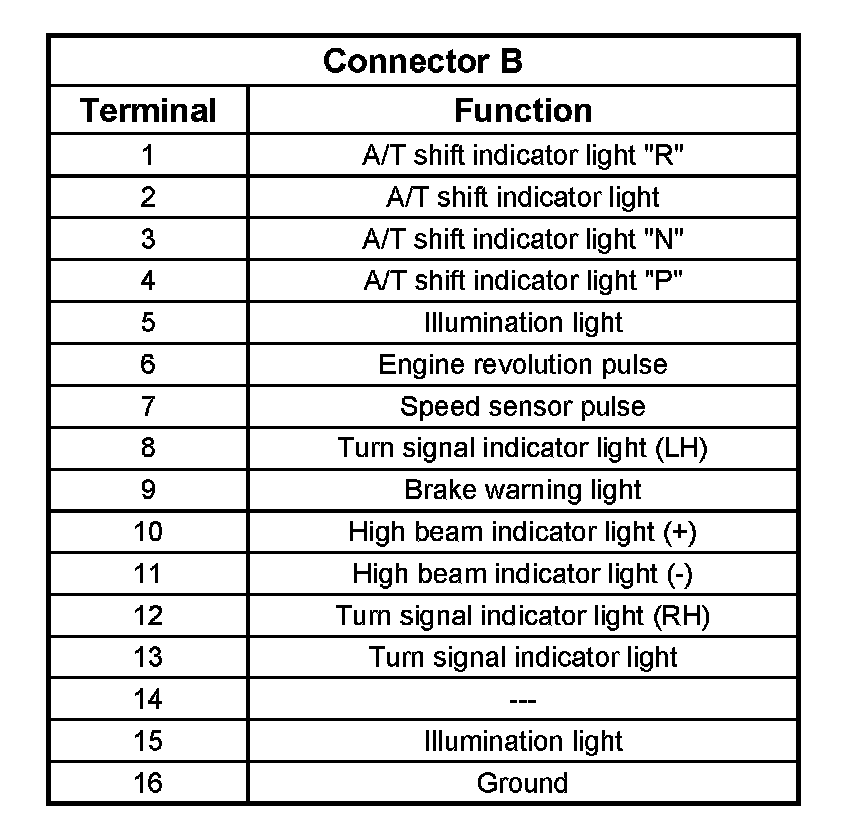

Connector B:

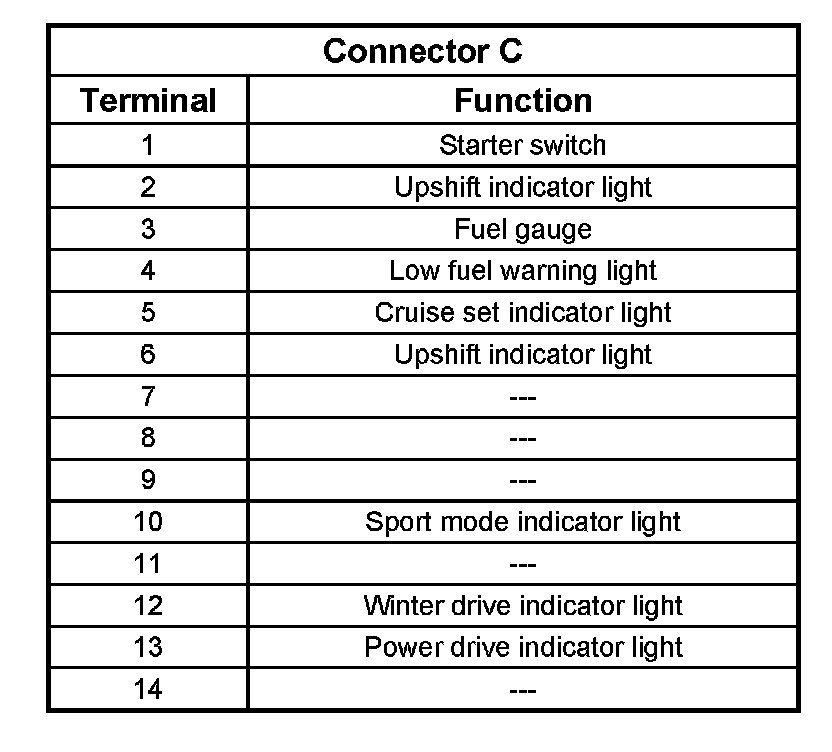

Connector C:
