Home >> Isuzu Truck >> 2003 >> Rodeo 2WD L4-2.2L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Diagrams

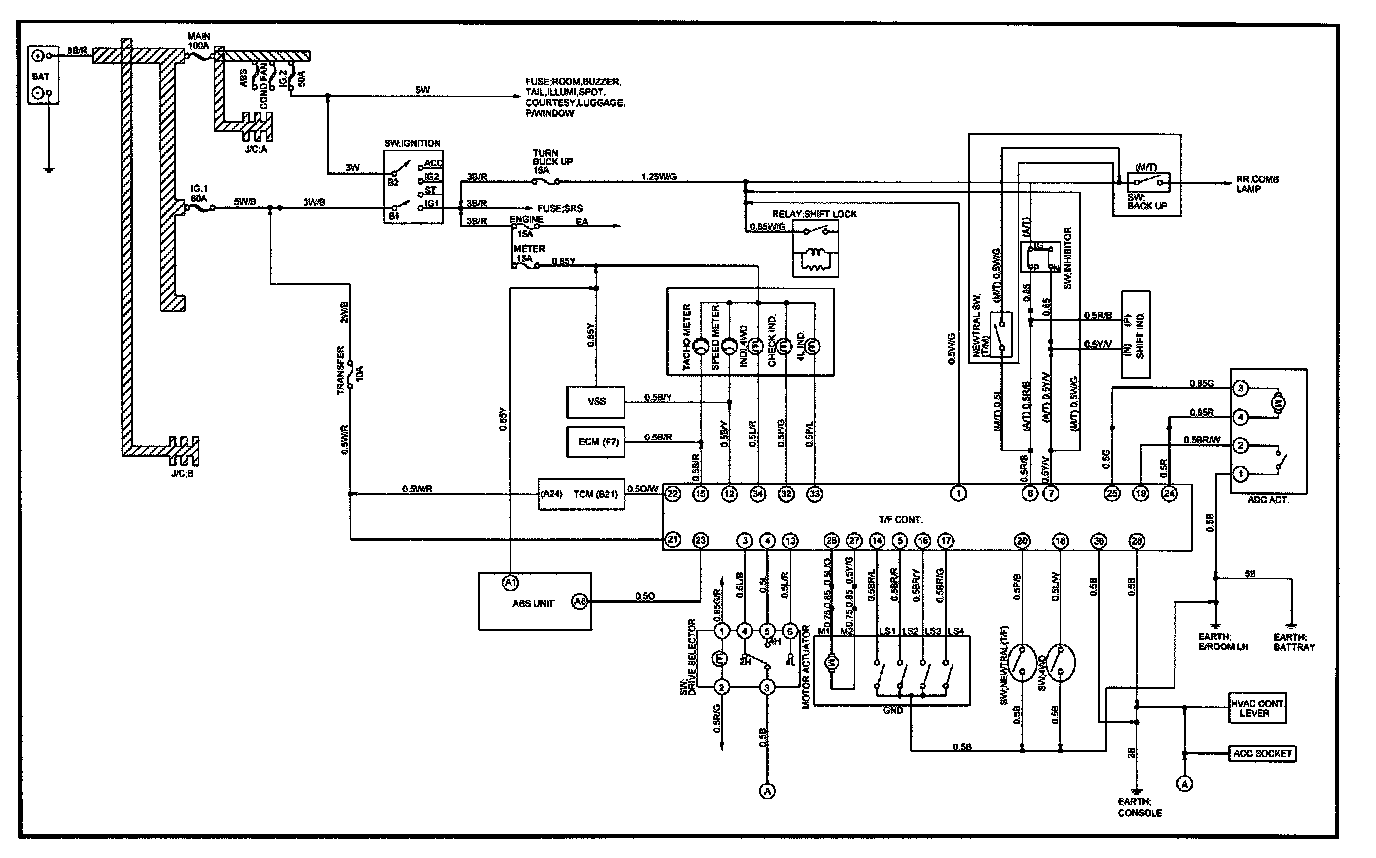

Transfer Case: Diagrams

Shift On The Fly:
