Home >> Isuzu Truck >> 2003 >> Rodeo 2WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Spot Lamp

Spot Lamp

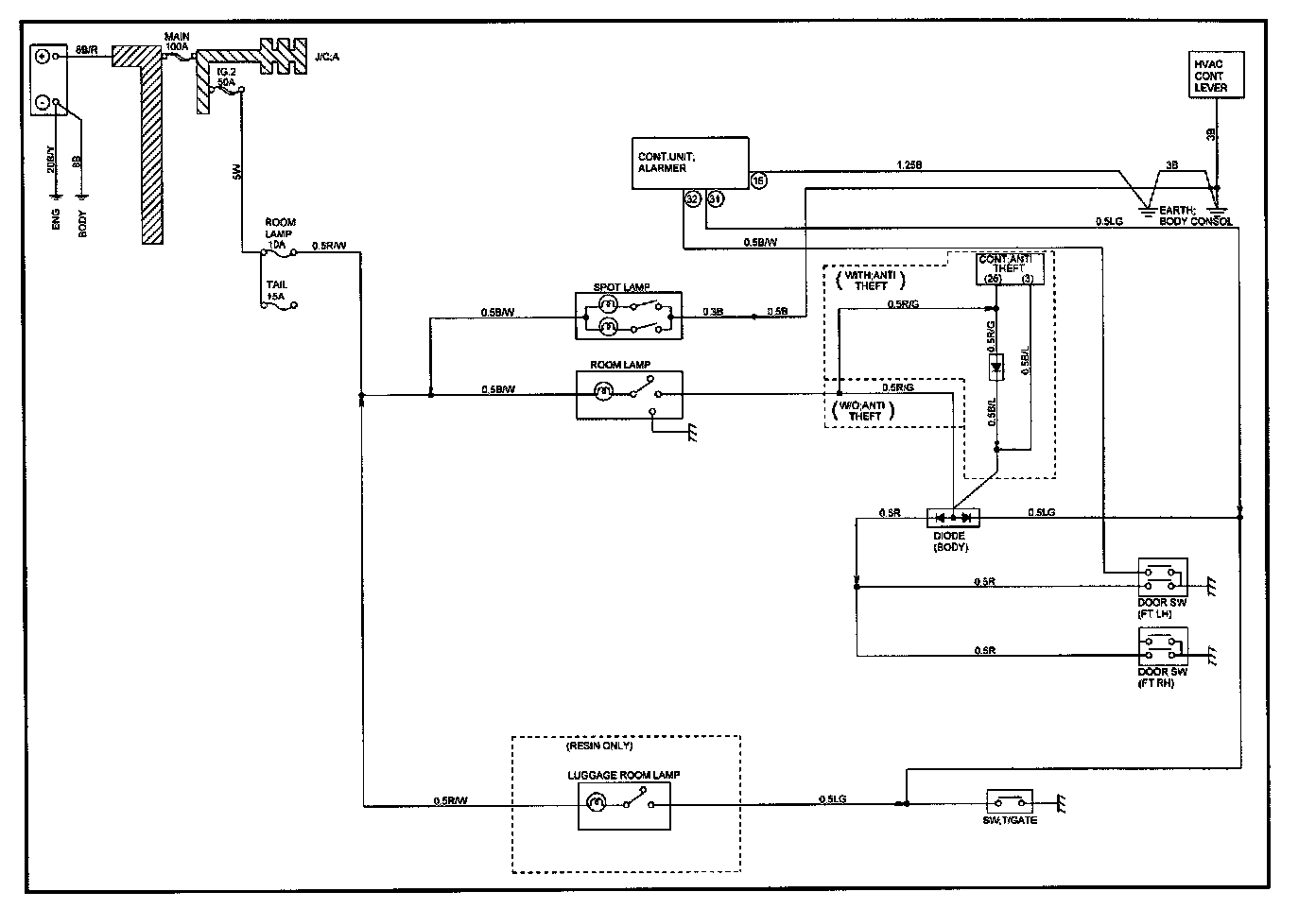

Room, Luggage, Courtesy, Spot, Warning Buzzer (LWB):

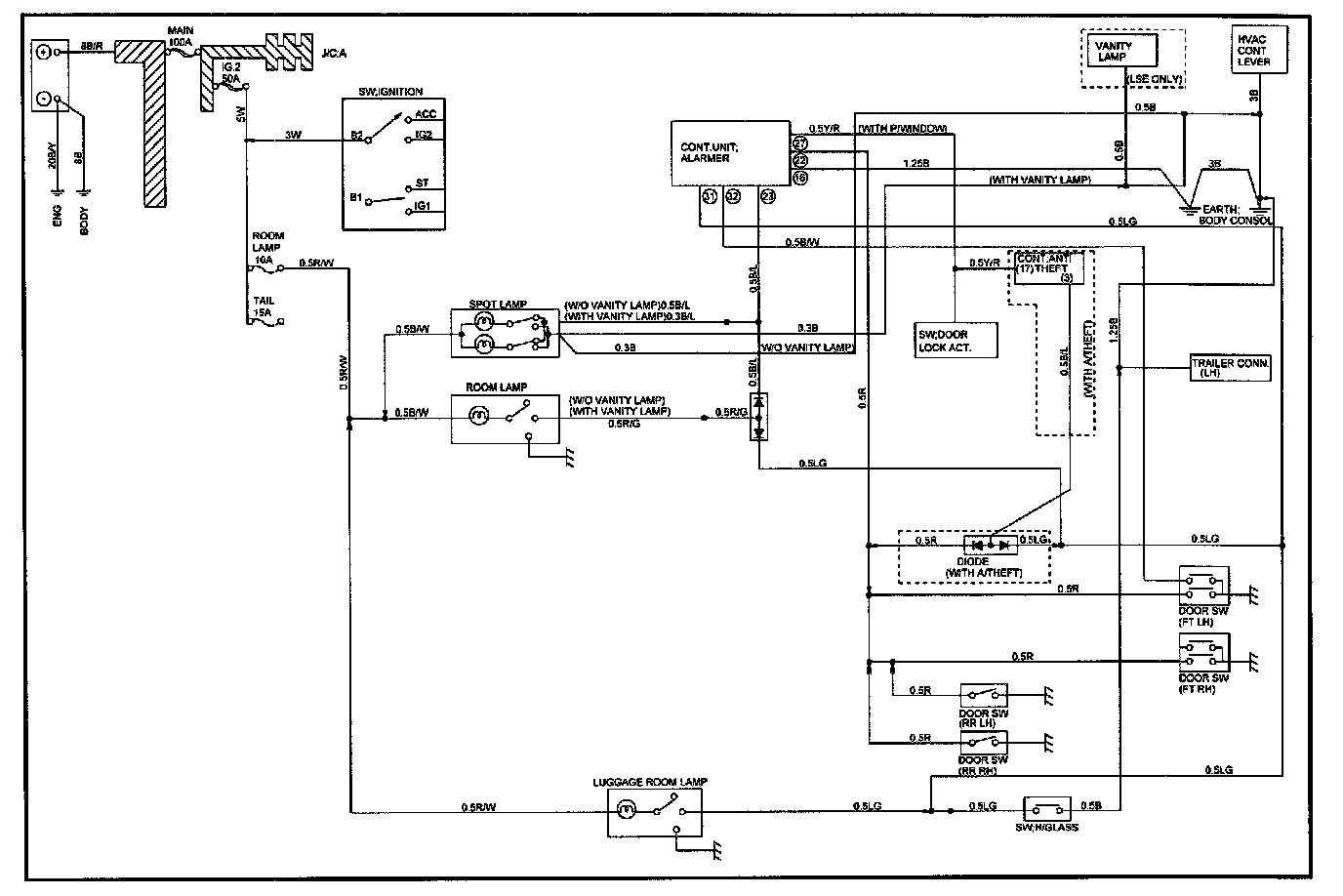

Room, Luggage, Courtesy, Spot, Warning Buzzer (SWB):
