Schematic Diagrams

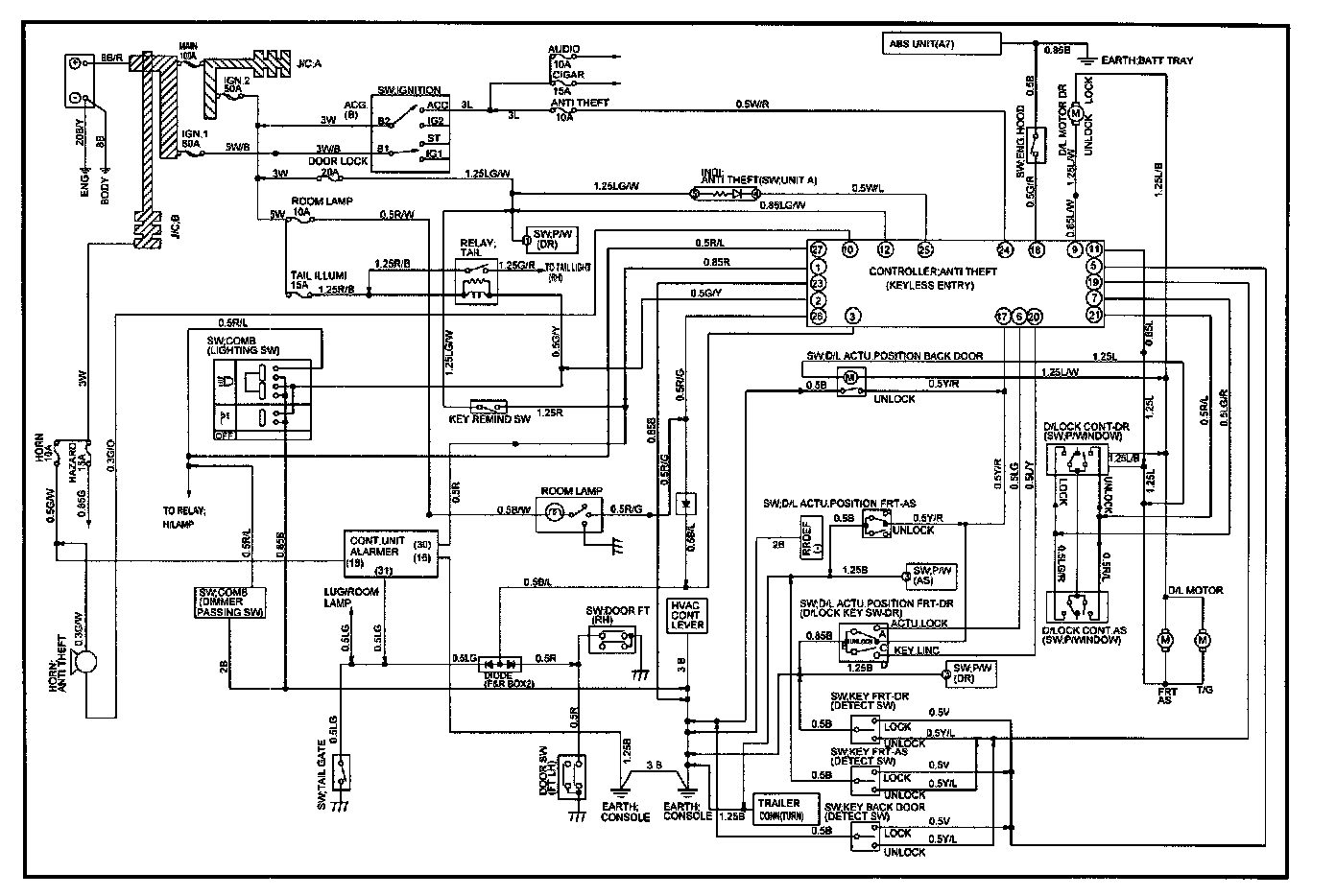

Anti-theft With Keyless Entry (LWB):

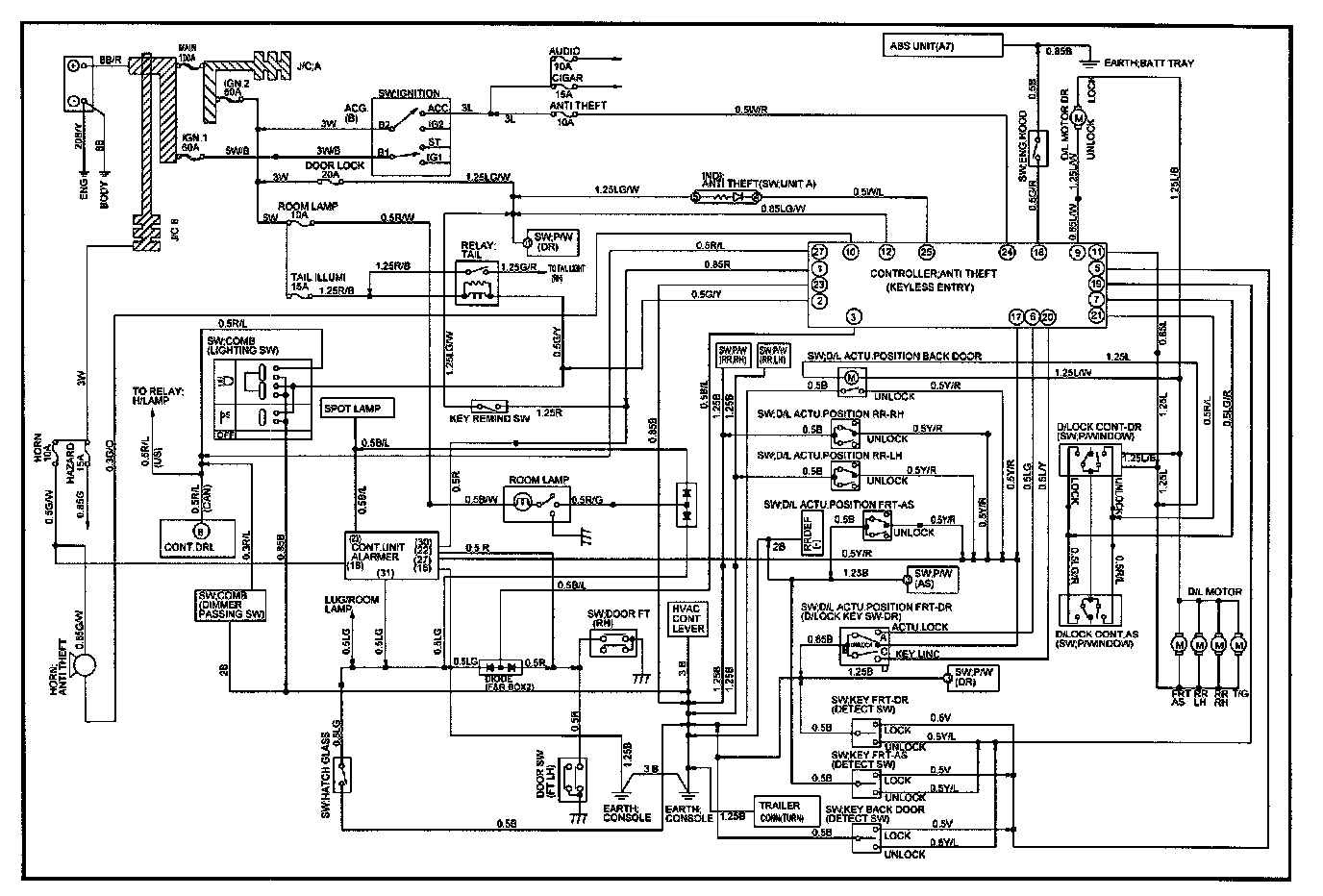

Anti-theft With Keyless Entry (V6 SWB):

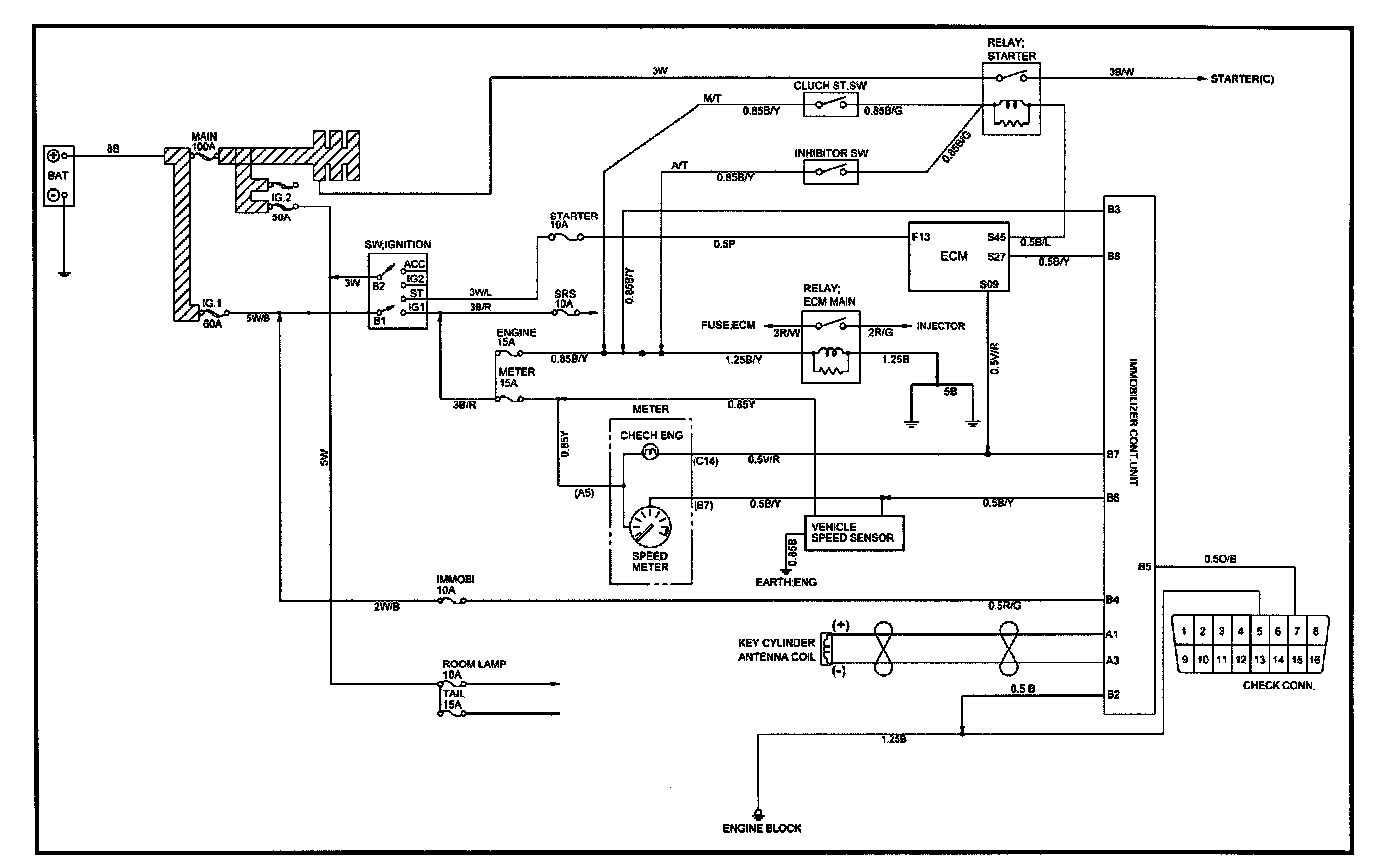

Immobilizer:
