Home
>>
Isuzu Truck
>>
2003
>>
Rodeo 4WD V6-3.2L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Diagrams
>>
Schematic Diagrams
Schematic Diagrams

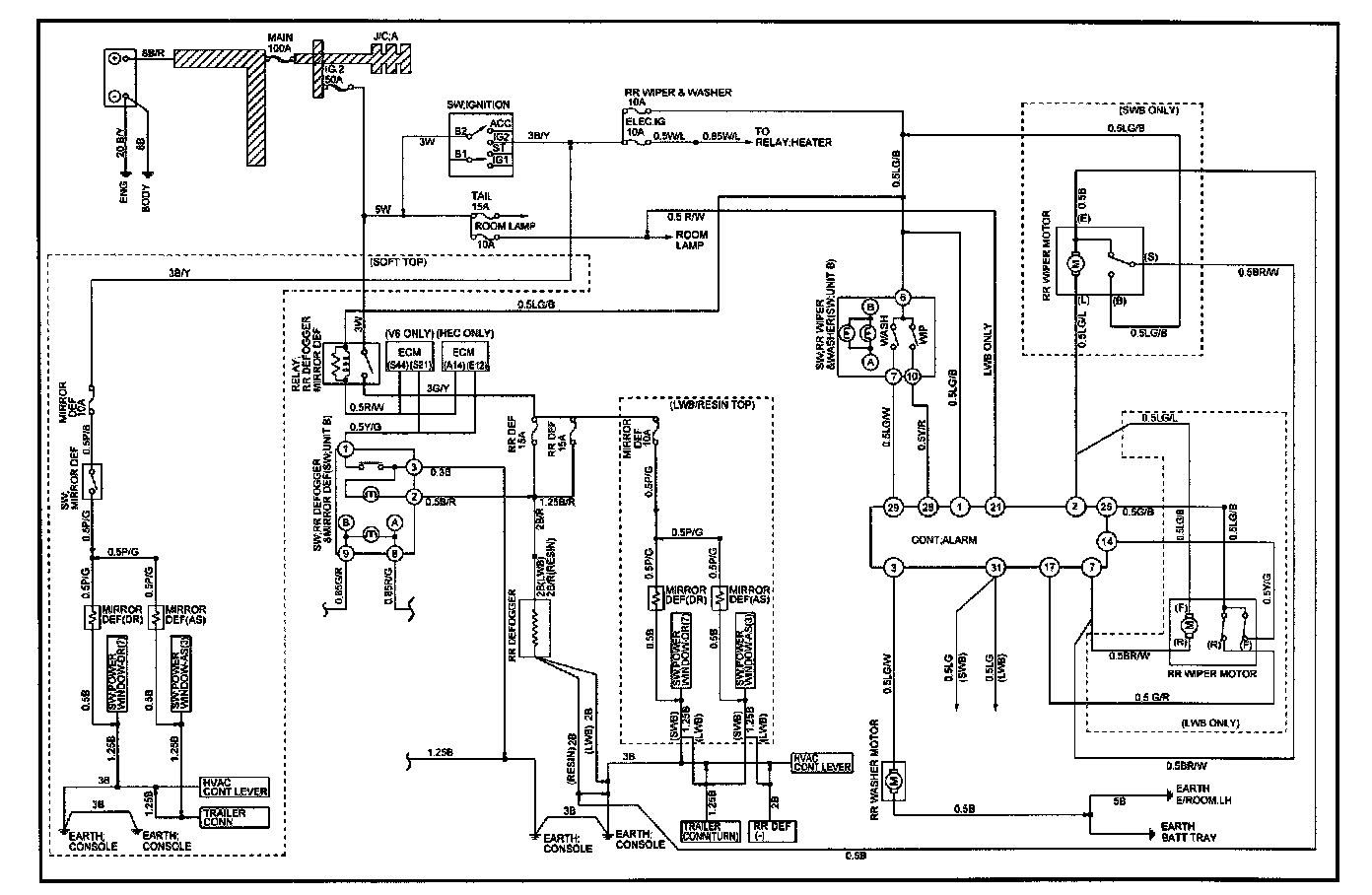

Rear Wiper/Washer, Rear Defogger And Mirror Defogger:
FRT Wiper:
