Isuzu Truck
>>
2006
>>
Ascender 2WD L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heater Control Valve
>>
HVAC System - Manual
HVAC System - Manual

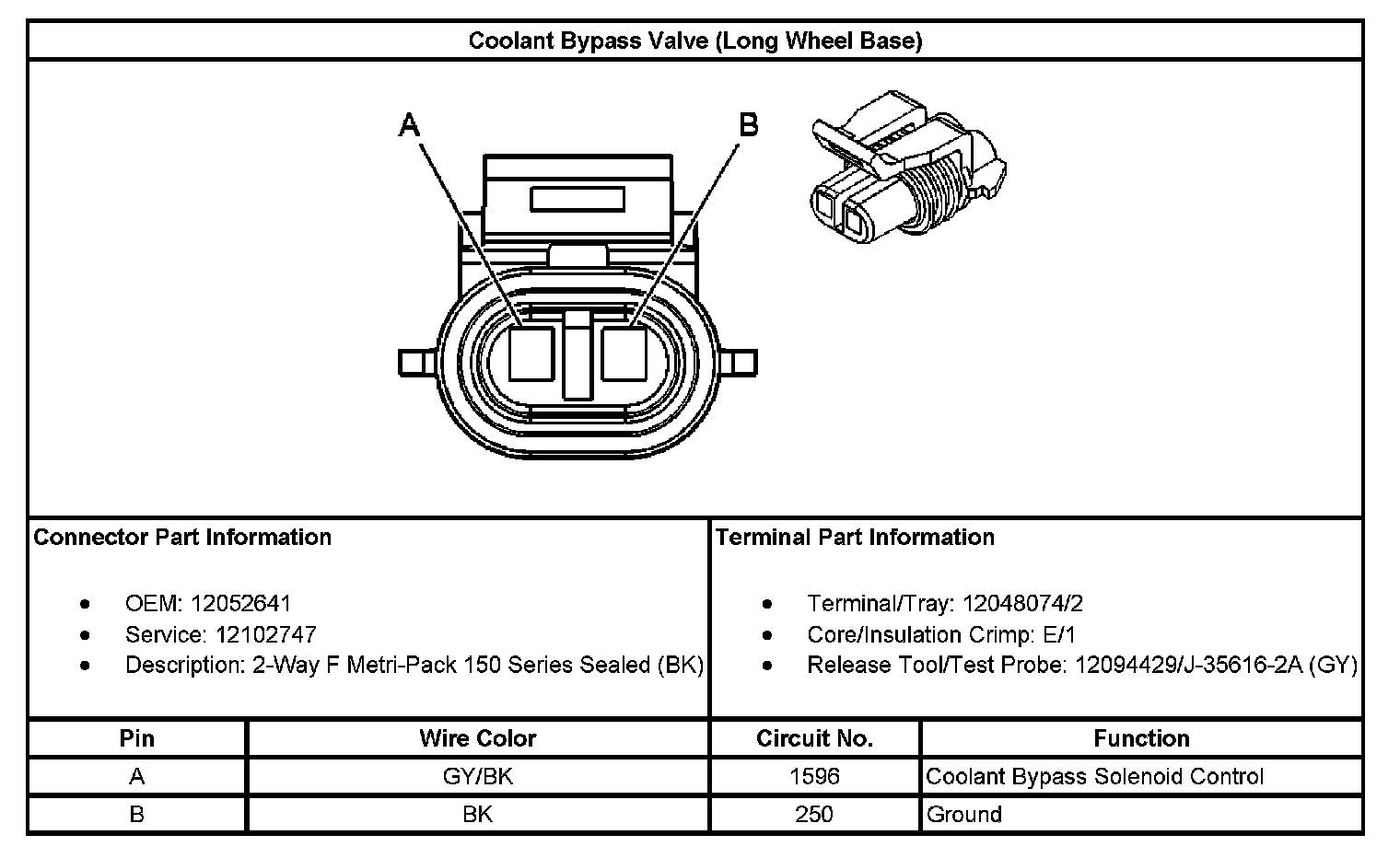

Coolant Bypass Valve (Long Wheel Base):
