Vehicle Speed Sensor
Vehicle Speed Sensor
Automatic Transmission Inline 20-Way Connector End View

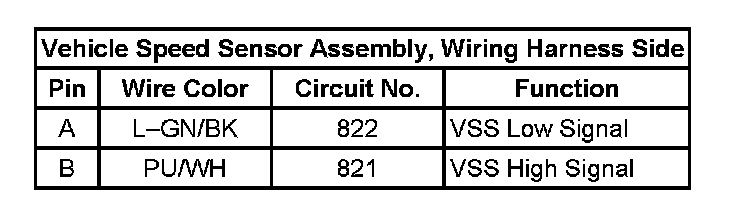

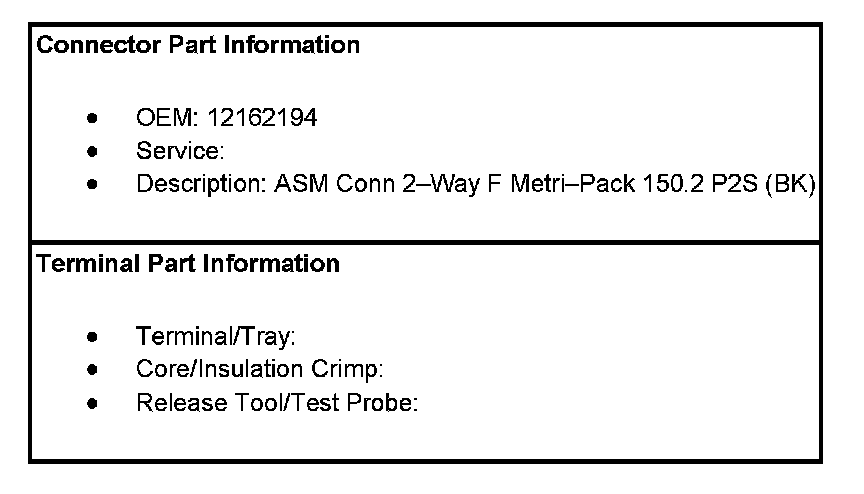

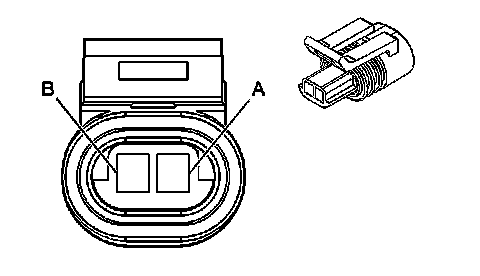

Vehicle Speed Sensor Assembly, Wiring Harness Side:
